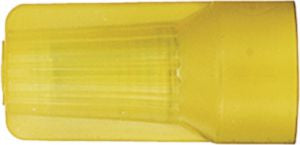

Sure-Lok Wire Connector, 22 to 12 AWG, 600/1000 Volts, Yellow
(Pack of
100)
• No pre-twisting of wires
• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
Couldn't load pickup availability
Closed End Connector 600V 16 to 10 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Winged Wire Connector 18 to 10 AWG Yellow
Couldn't load pickup availability
Term-A-Nut Pigtail Connector 18 to 12 AWG
Couldn't load pickup availability
Wire Nut Twister 22-12 AWG Tan
Couldn't load pickup availability
Winged Wire Connector 18 to 10 AWG Yellow
Couldn't load pickup availability
Term-A-Nut Pigtail Connector 18 to 12 AWG
Couldn't load pickup availability
Wire Nut Twister 22-12 AWG Tan
Couldn't load pickup availability
Product Description
• No pre-twisting of wires• Special “wedge-edge” spring cuts grooves into the wires
• Resists loosening from vibration
• Rated 600V maximum at 221°F (105°C); 1,000V maximum in signs, fixtures and luminaries• Operating temperature range: –40°F to +221°F (–40°C to +105°C)
• Covers all splicing needs for 24 Ga. through 6 Ga. wire
• Can be reused for solid and stranded copper wires
• Can be used with two or more wires
• Easier to use for overhead splicing and difficult applications where space is a problem
• Can be used in circuits that need to be changed frequently without taping
Technical Specifications
| Item#: | P35026 |
|---|---|
| Wire Gauge | 22-12 AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Yellow |
| Temperature Range | -40 to 221 F |
| Celcius Temperature Range | -40 to 105 C |
| Approvals | UL, CSA |
| Style | Sure-Lok Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
