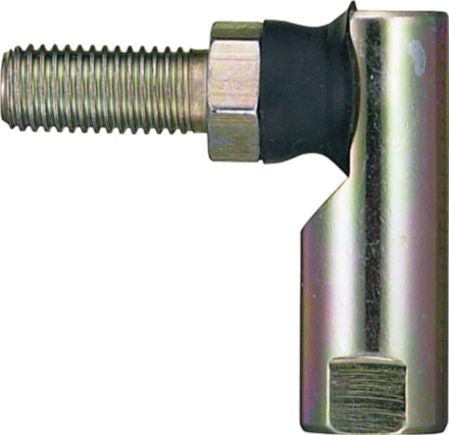

Throttle Ball Joint with Spherical Bearing, UNF Threads, Plated, Right Hand Threads, 5/8-18 Female Rod End with Stud
(Pack of
1)
SKU:60121 Item#: 60121
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
Catalog page#: 7-22
Frequently Bought Together
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 7/16-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/8-18
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Standard Size Drive Tip 0.187"
Couldn't load pickup availability
Standard Size Drive Tip 0.203"
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 10-32
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 60121 |
|---|---|
| Length of Rod End to Center of Stud | 2.5 " |
| Stud Length | 1.5 " |
| Stud Length to Center of Rod End | 2.5 " |
| Female Thread | 5/8-18 |
| Static Load Rating | 4,500 lb |
| Female and Stud Threads | 5/8-18 |
| Stud Thread | 5/8-18 |
| Thread | Right Hand Threads |
| Plating | Yes |
| A | 1.5 " |
| B | 2.5 " |
| C | 2.5 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.73 lb |
