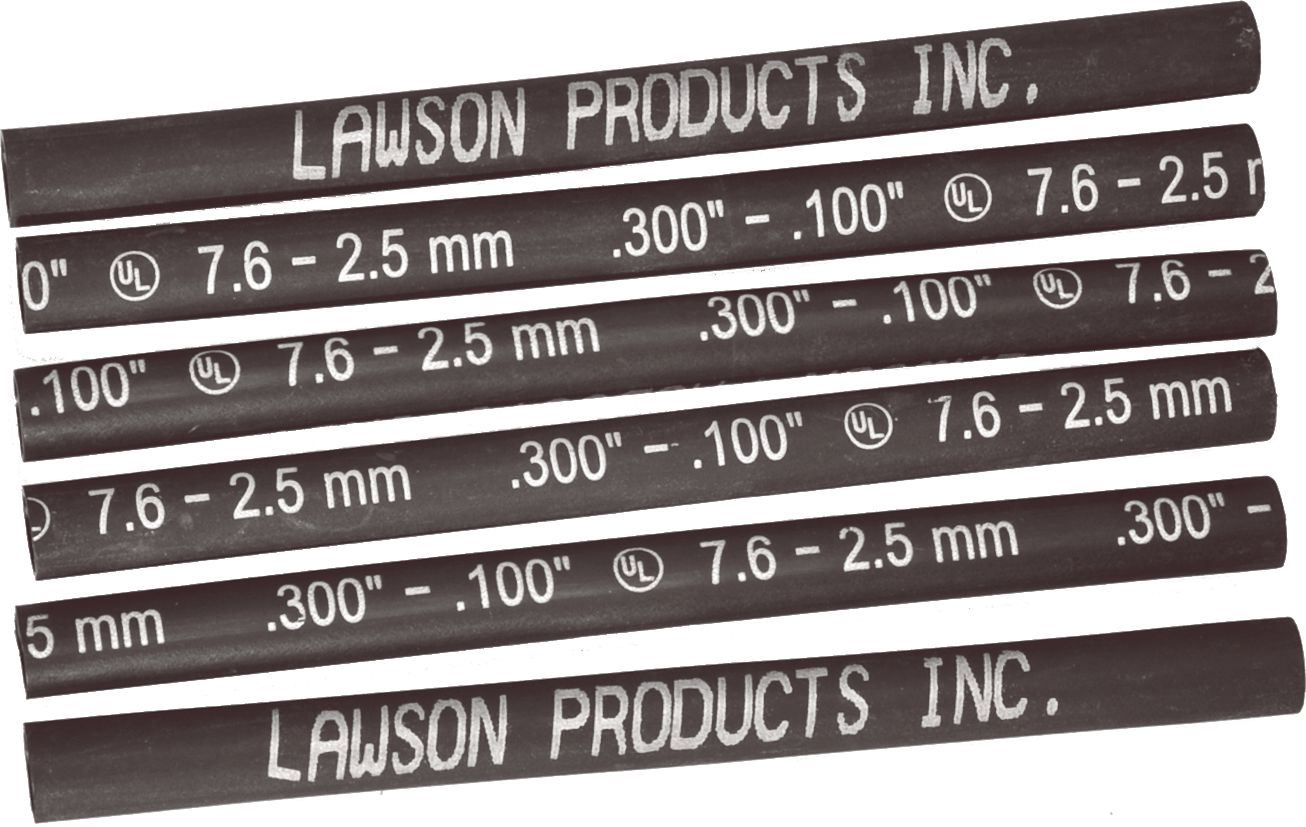

Tru-Shrink Heat Shrink Tubing 18 to 14 AWG Black
(Pack of
6.0)
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing Black 0.75 x 12"
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 1" x 30'
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.75" ID 25'
Couldn't load pickup availability
Product Description
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 99994 |
|---|---|
| Type | Pre-Cut |
| Style | Heavy Wall |
| Wire Gauge Coverage | 18-14 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .300 " |
| I.D. After Shrinkage | .100 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness After Shrinkage | 0.060 " |
| Voltage Rating | 600 V |
| Temperature Rating | 194 °F |
| Elongation | 425 % |
| Tensile Strength | 1,542 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
