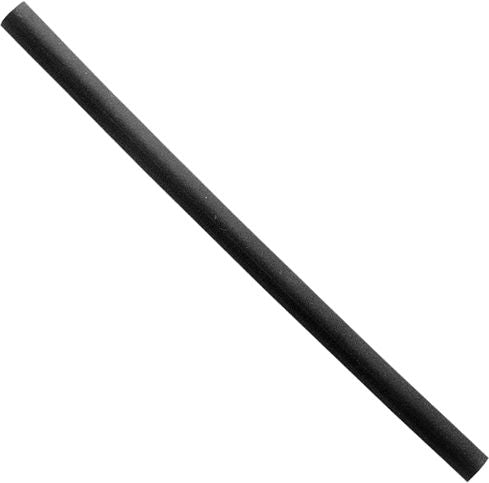

Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black
(Pack of
10.0)
• 2:1 shrink ratio
• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-6
Frequently Bought Together
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Lithium Coin Cell Battery #2032 3V
Couldn't load pickup availability
Procell AA Alkaline Battery 1.5V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 18 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
Couldn't load pickup availability
Heat Shrink Tubing 10/3 SJO AWG Clear
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Super Bondâ„¢ Heavy-Duty Activator Heptane Adhesive
Couldn't load pickup availability
Molding Tape Adhesion Promoter Clear 7.4fl.oz
Couldn't load pickup availability
Seam Sealing Tape 10mm x 26'
Couldn't load pickup availability
Heat Shrink Tubing 22 to 20 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 18 to 16 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 61656 |
|---|---|
| Type | Pre-Cut |
| Style | Thin Wall |
| Wire Gauge Coverage | 18-16 AWG |
| Diameter | 3/16 " |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | 0.187 " |
| I.D. After Shrinkage | 0.093 " |
| Wall Thickness After Shrinkage | 0.020 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Elongation | 200 % |
| Tensile Strength | 1,500 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 12,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | CSA, UR and Meets or exceeds MIL-1-23053 D/5, Class I, II and II; AMS 3636C and AMS 3637B requirements |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
