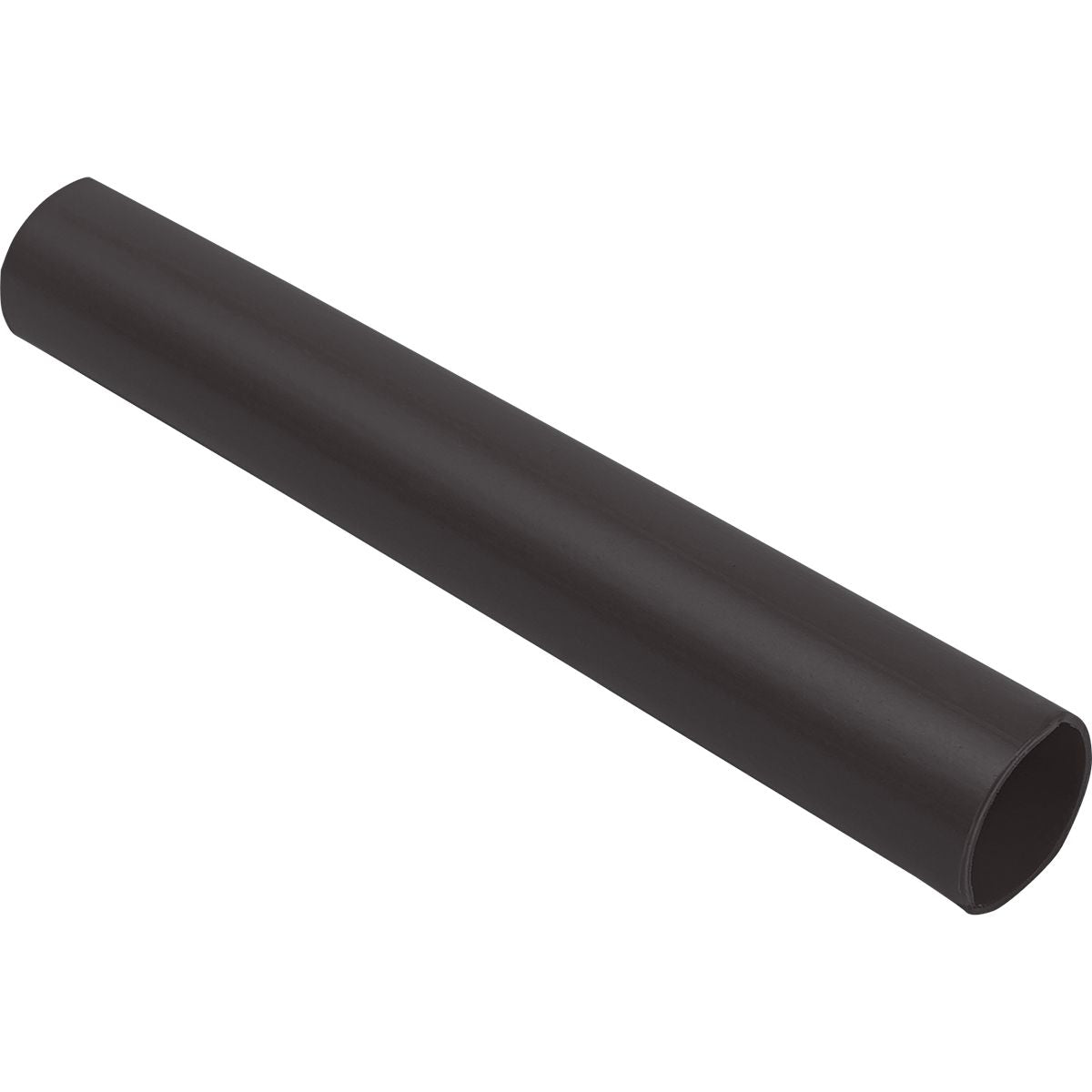

Tru-Shrink Heat Shrink Tubing 4 to 1/0 AWG Black
(Pack of
10.0)
• 2:1 shrink ratio
• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-6
Frequently Bought Together
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing Assortment 5 Items 38Pcs
Couldn't load pickup availability
Thermapod 1/8-1/2" Heat Shrink Assortment with Tools
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Snap Bushing Nylon Black 2-15/32"
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-9
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 61661 |
|---|---|
| Type | Pre-Cut |
| Style | Thin Wall |
| Wire Gauge Coverage | 4-1/0 AWG |
| Diameter | 3/4 " |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | 0.750 " |
| I.D. After Shrinkage | 0.375 " |
| Wall Thickness After Shrinkage | 0.030 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Elongation | 200 % |
| Tensile Strength | 1,500 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 12,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | CSA, UR and Meets or exceeds MIL-1-23053 D/5, Class I, II and II; AMS 3636C and AMS 3637B requirements |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
