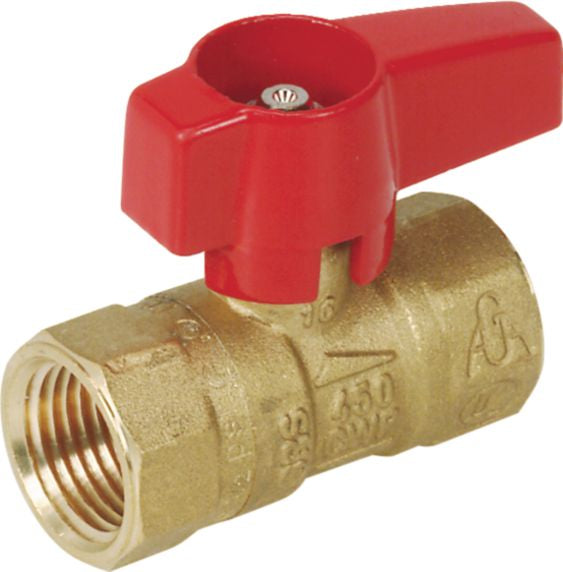

UL Forged Body Ball Valve, Brass, 3/4 x 3/4", Female NPT x Female NPT, 450PSI
(Pack of
1)
SKU:63153 Item#: 63153
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Standard port for compact design
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Aluminum T-handle enameled red
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 450 PSI
• Operating temperature: –40°F to +350°F
• Approvals: CSA, UL, CUL, AGA, CGA
Applications:
• Gas
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Pipe Bushing Brass 3/4-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Standard port for compact design
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Aluminum T-handle enameled red
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 450 PSI
• Operating temperature: –40°F to +350°F
• Approvals: CSA, UL, CUL, AGA, CGA
Applications:
• Gas
Technical Specifications
| Item#: | 63153 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | UL Forged Body for Gas Lines |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 3/4-14 |
| Fitting Dimension B | 3/4-14 |
| Working Pressure | 450 PSI |
| Temperature Range | -32 to 125 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.53 lb |
