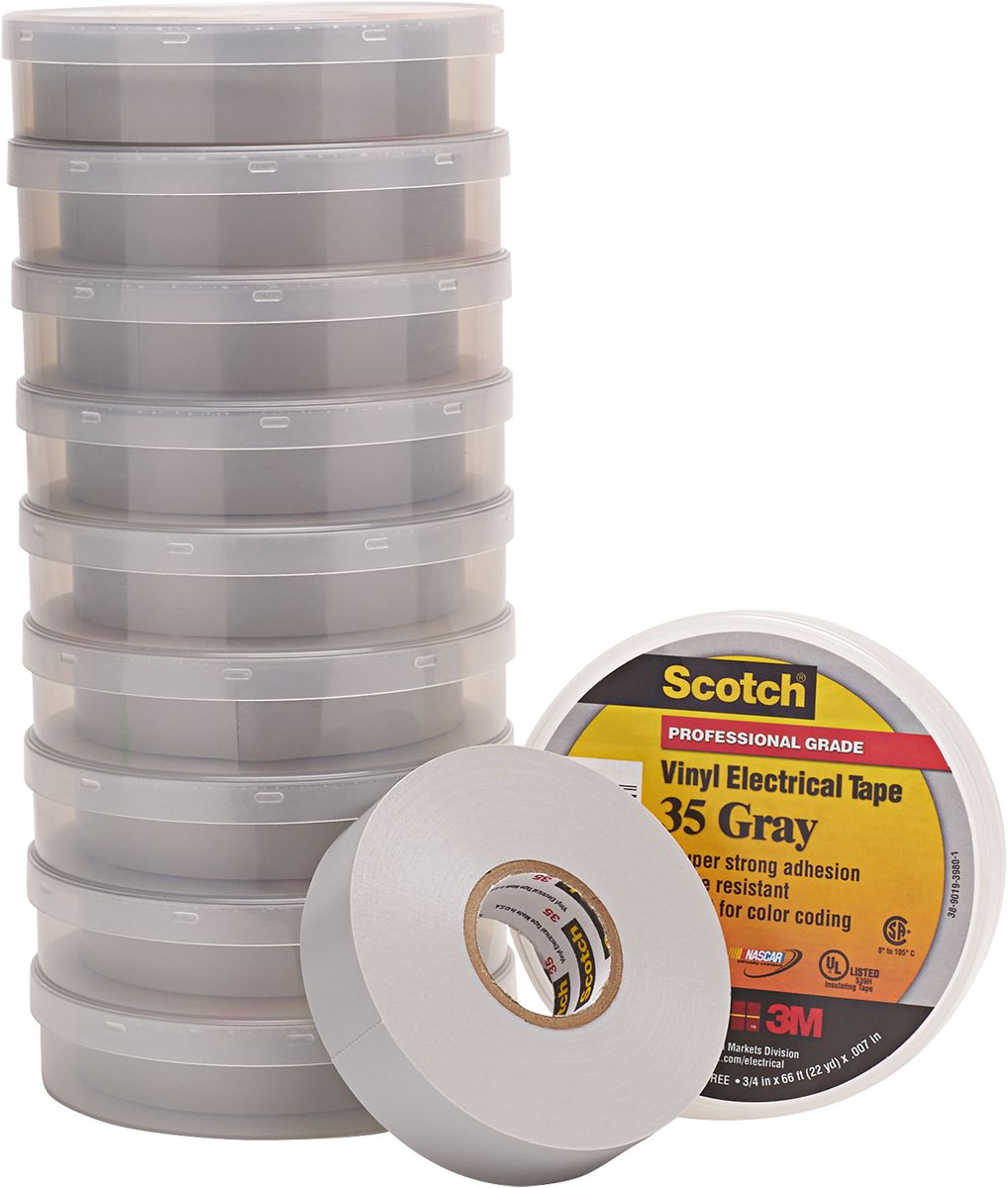

Vinyl Electrical Tape, Gray, 3/4" Width, 66' Length, 225% Elongation, 32 to 220°F Temperature Rating
(Pack of
1)
SKU:1145809 Item#: 1145809
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
Catalog page#: 2-12
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 2" x 30'
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 60'
Couldn't load pickup availability
Temflex™ 165 Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Heat Shrink Tubing 4 AWG Black
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 1145809 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Gray |
| Dielectric Strength | 1,250 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 32 to 220 °F |
| Celcius Temperature Range | 0 to 105 °C |
| Elongation | 225 % |
| Adhesion to Steel | 20 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 17 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – 3M 35 Series |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 2.45 lb |
