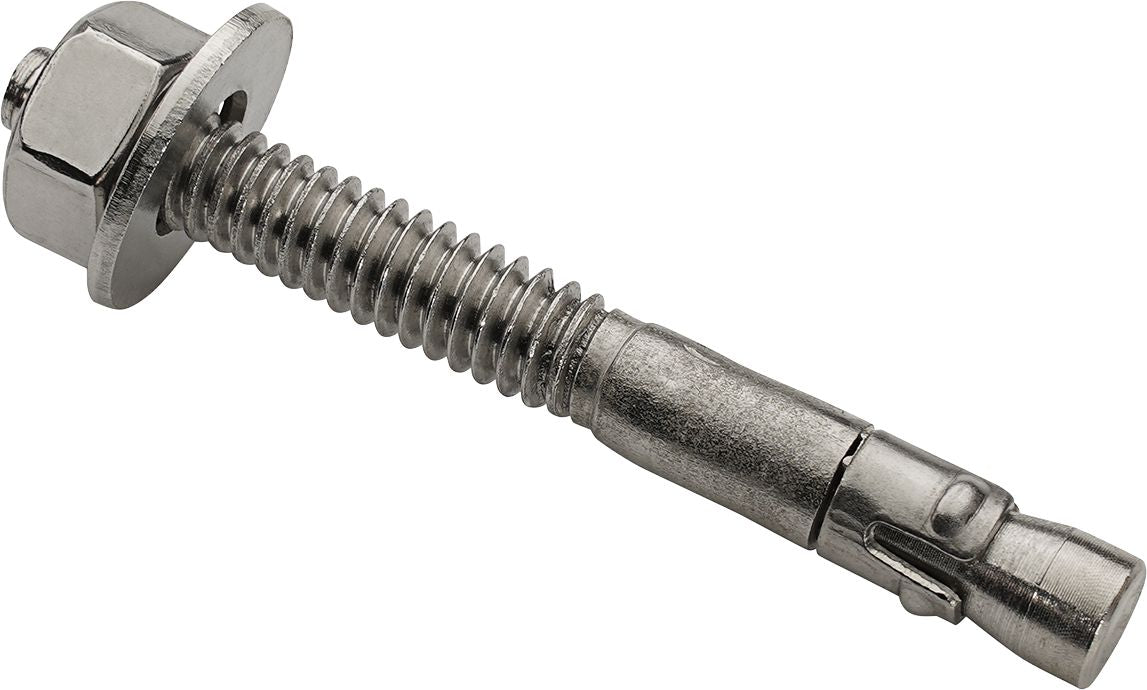

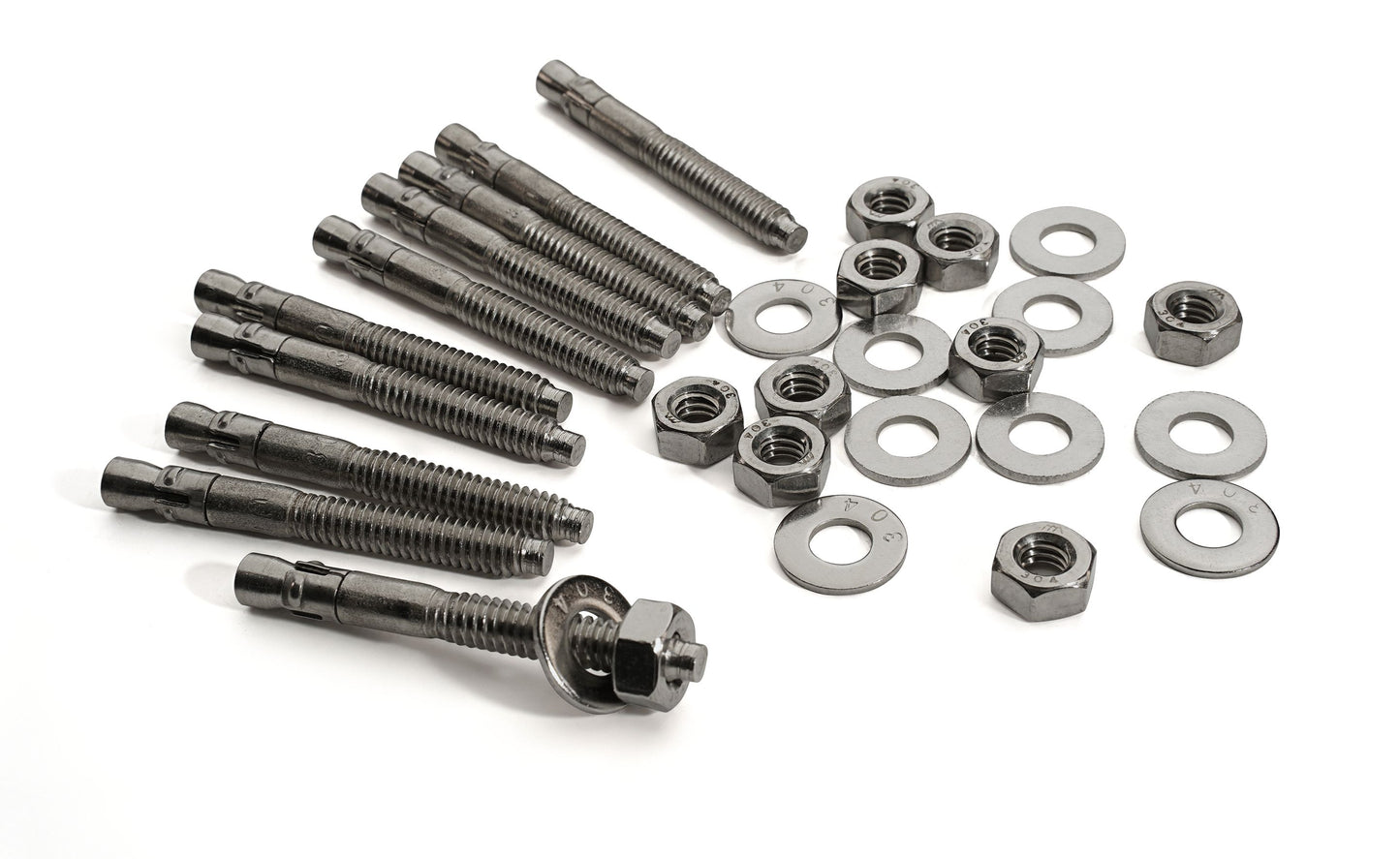

Wedge Type Stud Bolt Anchor, Stainless Steel, Plain Finish, 1/4 x 2-1/4"
(Pack of
10)
SKU:91623 Item#: 91623
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Double Expansion Shield Anchor Alloy Steel 5/8"
$0.00
Couldn't load pickup availability
Masonry Sleeve Anchor Steel 1/4 x 2-1/4"
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1"
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
$0.00
Couldn't load pickup availability
DIN 9021B Fender Washer Low Carbon Steel 18mm
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/4 x 1-3/4"
$0.00
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 3/4 x 4"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 5/8 x 8-1/2"
$0.00
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91623 |
|---|---|
| Diameter | 1/4 " |
| Length | 2-1/4 " |
| Thread Length | 1-1/4 " |
| Drill Size | 1/4 " |
| Material | Stainless Steel |
| Finish | Plain |
| Type | Wedge Anchor |
| Proof Test Load | 1,360 lb |
| Length Identification Code | B |
| Size | 1/4X2-1/4 " |
| Minimum Embedment | 1-1/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 0.36 lb |
