Wire Rope Cylindrical Terminal, 5/32", Stainless Steel
(Pack of 10)

Item#: 1440275

Loos & Co. Inc.

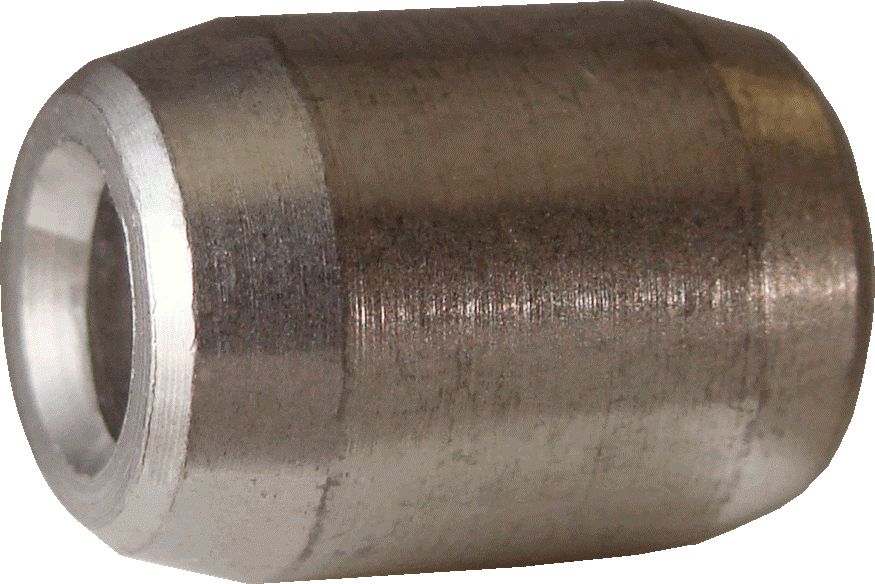

Cylindrical Terminals are also known as "Stop Buttons","Sleeves", and "Boeing Buttons" (Boeing Part No. BACT14A). These stainless steel terminals have a multitude of uses. When properly applied, they will hold the breaking strength of the wire rope (except for 1 x 7 or 1 x 19 construction).
• Stainless Steel

Read More

Frequently Bought Together


Wire Rope Thimble, 9/16 - 5/8", Steel, Galvanized, Heavy-Duty

Item#: 1442068

Wire Rope Clip, Stainless Steel, 1/8"

Item#: 1427701

Wire Rope Clip, Forged, Galvanized, 3/8"

Item#: 1442560

8ft Fiberglass Step Ladder 6308

Item#: 1693963

4ft Fiberglass Twin Ladder T7404

Item#: 1694056

8ft Fiberglass Step Ladder 7308

Item#: 1693967

Molding Clip with Sealer Nylon White 10 x 12mm

Item#: P85218

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Radiator Grille Nut M4.2-1.41

Item#: 1513544

Wire Rope Sleeve, 3/32", Stainless Steel

Item#: 1440194

Wire Rope Sleeve, 3/64", Copper

Item#: 1440390

Wire Rope Thimble, 1/2", Steel, Galvanized

Item#: 1442587

Swivel, Stainless Steel, Eye and Eye

Item#: 1427722

Wire Rope Clip, Malleable, Galvanized, 5/16"

Item#: 1442368

Wire Rope Thimble, 9/16 - 5/8", Steel, Galvanized, Heavy-Duty

Item#: 1442068

Product Description

Cylindrical Terminals are also known as "Stop Buttons","Sleeves", and "Boeing Buttons" (Boeing Part No. BACT14A). These stainless steel terminals have a multitude of uses. When properly applied, they will hold the breaking strength of the wire rope (except for 1 x 7 or 1 x 19 construction).
• Stainless Steel

Technical Specifications

Item#: 1440275
Manufacturer Model #: ST24-5
Type Terminal, Cylindrical
Material Stainless Steel
Cable Diameter 5/32 "

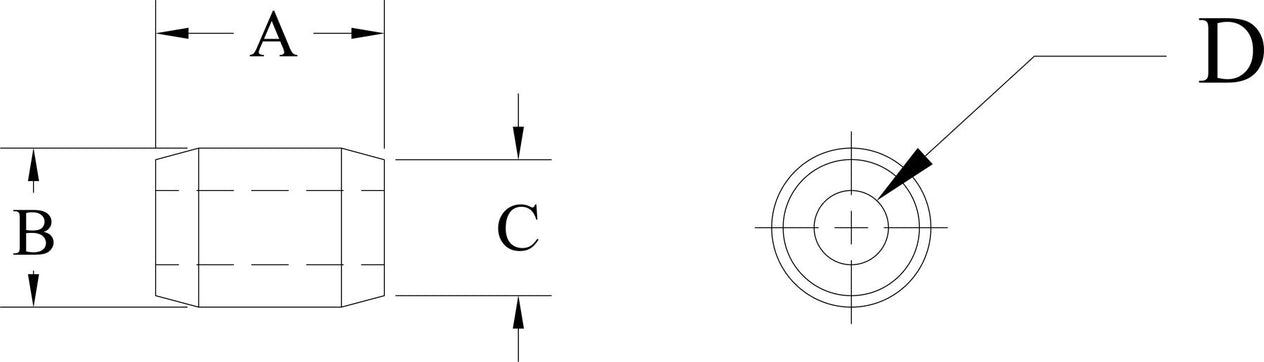

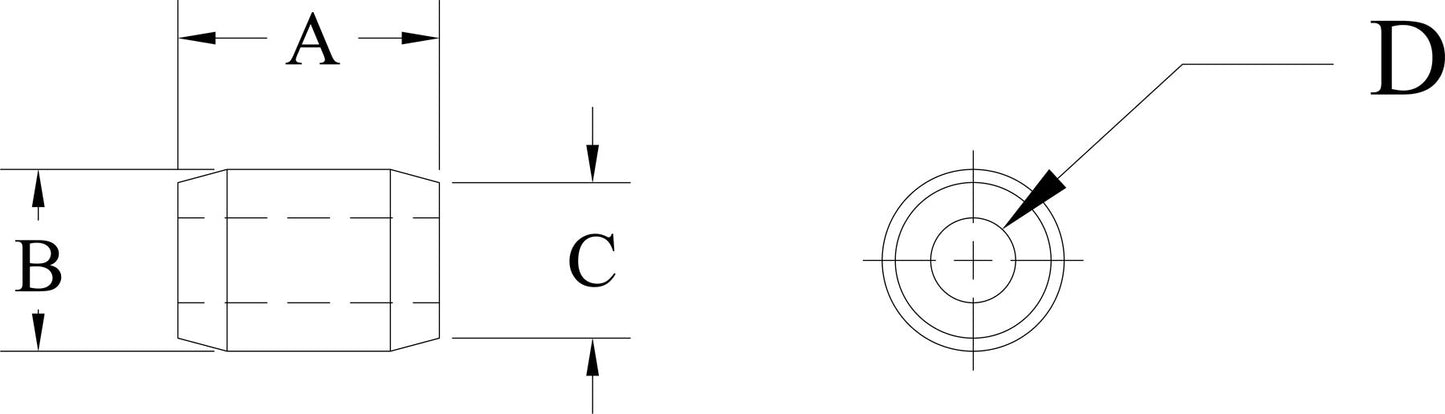

A 0.510 - 0.500 "
B 0.377 - 0.373 "
C 0.313 - 0.308 "
D 0.177 - 0.172 "
Die Size 3/16
UNSPSC #: 31162805
TAA Compliant: Yes
