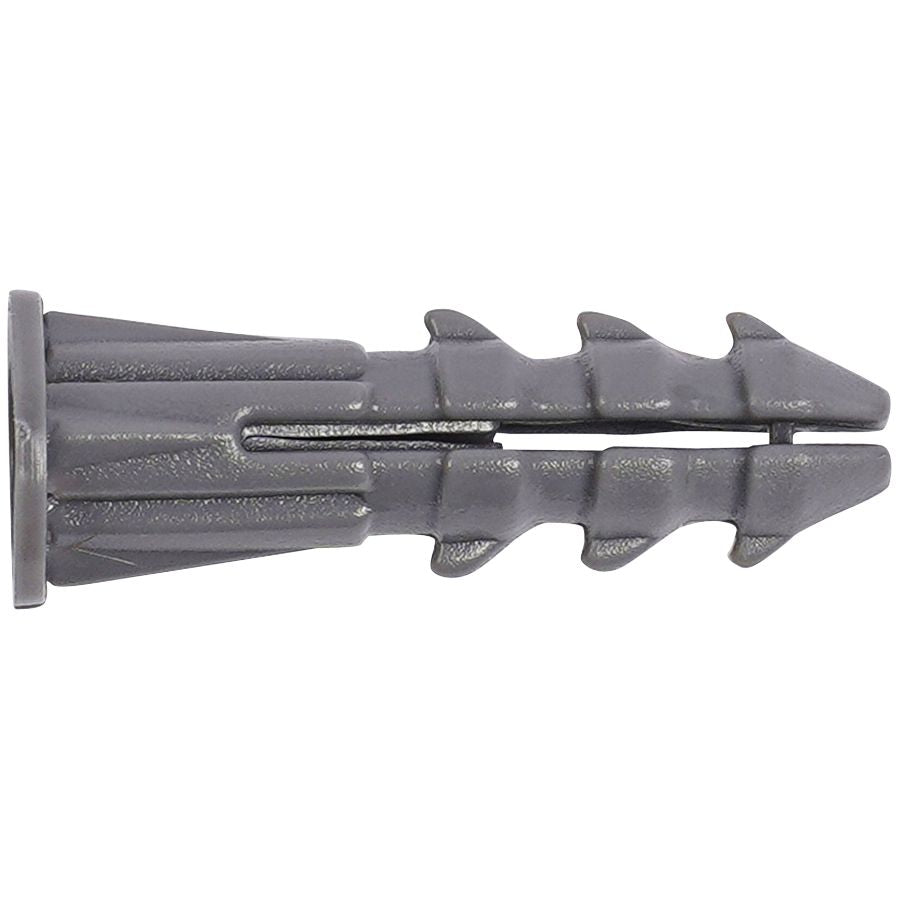

1/4x1 Gray Ribbed Wall Anchor
(Pack of
100.0)
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Frequently Bought Together
Conical Screw Anchor Kit Plastic 201Pcs
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Kit 102Pcs
Couldn't load pickup availability
Self-Drilling Wallboard Mini Anchor Kit 51Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 16mm
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability

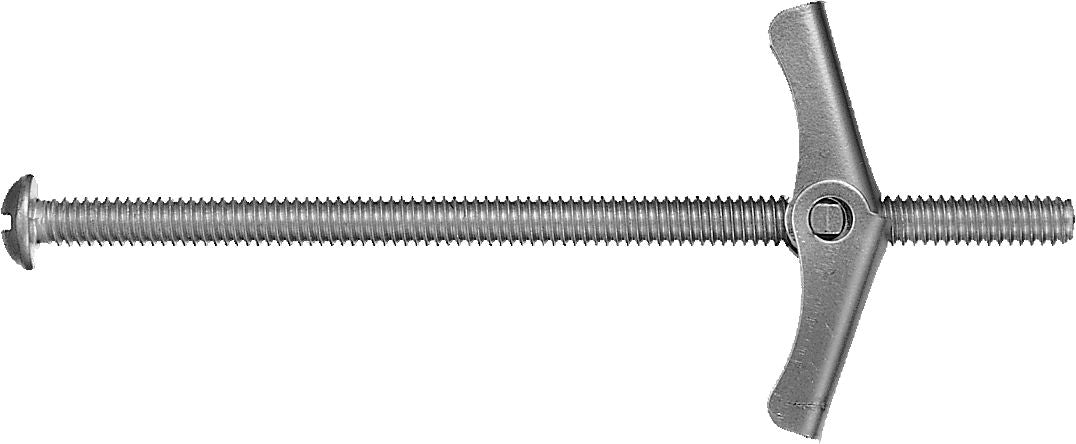

Wing-Type Toggle Bolt Anchor Steel #6-32 x 3"
Couldn't load pickup availability
Toggle Bolt Anchor Wing #6-32
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 3/8-16 x 6"
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580013 |
|---|---|
| Length | 1 " |
| Type | Plastic Screw Anchor |
| Size | 1/4 x 1 |
| Diameter | 1/4 " |
| Material | Plastic |
| Drill Size | 1/4 " |
| Grip Range | 3/8 and up " |
| Color | Gray |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #10 or #12 |
| Tensile Pull-Out Strength | 40 - 58 lb |
| Shear Proof Test Load | 60 - 125 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
