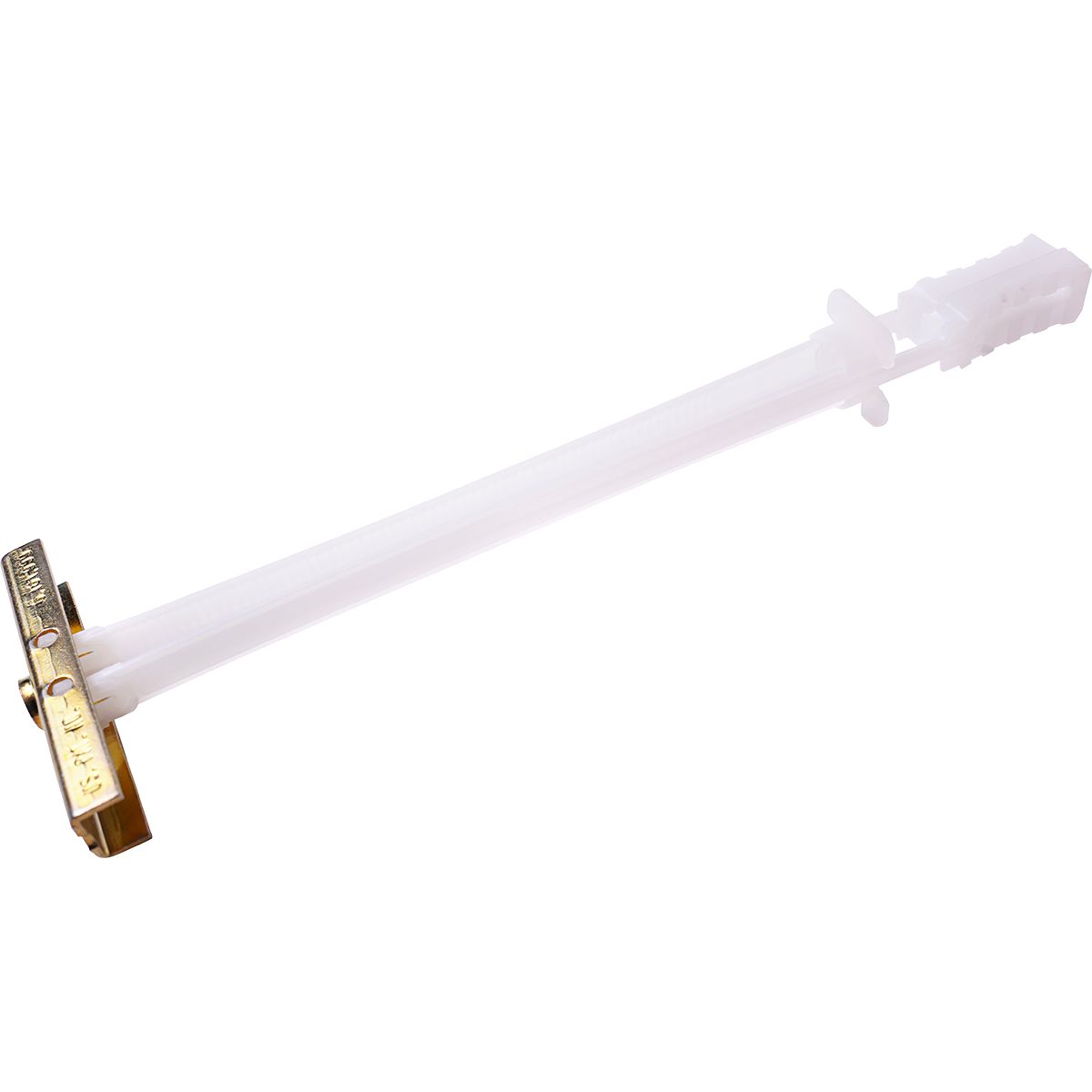

1/4-20 Joggle-A-Toggle Plus Wall Anchor
(Pack of
25)
SKU:DY09700800 Item#: DY09700800
• Pre-installs without a bolt
• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Frequently Bought Together
Lag Screw Shield Anchor Long Style 3/8 x 2-1/2"
Couldn't load pickup availability
Double Expansion Shield Anchor Alloy Steel 5/8"
Couldn't load pickup availability
Masonry Sleeve Anchor Steel 1/4 x 2-1/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
Couldn't load pickup availability
Fender Washer Standard Steel 1-1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 6"
Couldn't load pickup availability
Hollow Wall Anchor Setting Tool
Couldn't load pickup availability
Tubular Anchor Plastic White #4 to #6
Couldn't load pickup availability
Product Description
• Pre-installs without a bolt• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Technical Specifications
| Item#: | DY09700800 |
|---|---|
| Type | Toggle Bolt Anchor |
| Size | 1/4-20 " |
| Diameter | 1/4 " |
| Material | Steel/Plastic |
| Thread | Coarse |
| Thread Pitch | 20 |
| Drill Size | 1/2 " |
| Grip Range | 3/8" - 2-1/2" (9mm - 64mm) |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 306 lb |
| Tensile Proof Test Load In Concrete | 925 lb |
| Pullout Ultimate Average Lbs.Steel Thickness 1 / 2" | 1,283 lb |
| Bolt Size | 1/4-20 " |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.79 lb |
