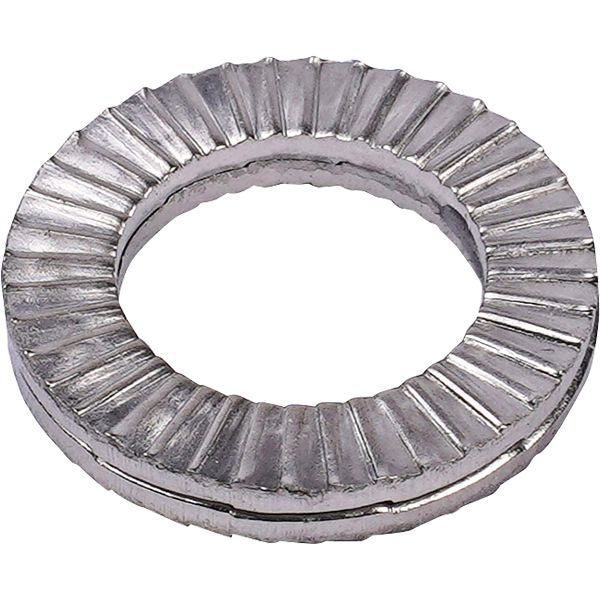

1/4 Standard 316 SS Anti-Vibration Serated Self Lock Washer
(Pack of
10)
SKU:DY10341300 Item#: DY10341300
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
$0.00
Couldn't load pickup availability
DIN 6797A Star Lock Washer External Steel M6
$0.00
Couldn't load pickup availability
Lock Washer Non-Linking Steel 7/16"
$0.00
Couldn't load pickup availability
Lock Washer Non-Linking Steel 5/16"
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
$0.00
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 7/16"
$0.00
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
$0.00
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
$0.00
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
$0.00
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Technical Specifications
| Item#: | DY10341300 |
|---|---|
| Nominal Size | 1/4 " |
| Type | Serrated Self Lock Washers |
| Material | Stainless Steel |
| I.D. | 0.28 " |
| O.D. | 0.45 " |
| Thickness | 0.09 " |
| Grade | 316L |
| Quantity Per Package | 10.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
