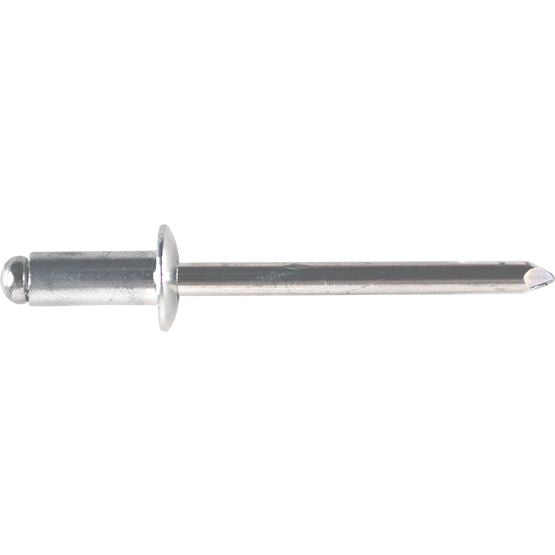

Open End Rivet, Dome Head, Aluminum, 3/16" Diameter, 0.188 to 0.25" Grip Range, 0.45" Body Length
(Pack of
100)
SKU:484 Item#: 484
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Item#: 28679
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Item#: 28699
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Item#: 82353
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1965
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1966
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Item#: 85109
$0.00
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Item#: P61817
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1965
$0.00
Couldn't load pickup availability
Multi-Grip Lockbolt Rivet Head Aluminum 3/16"
Item#: 1543697
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

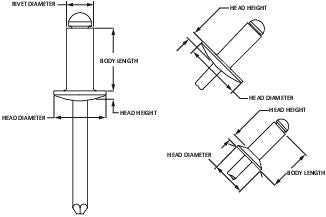

Technical Specifications
| Item#: | 484 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.188 – 0.250 " |
| Industry Number | 64 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.450 " |
| Shear Strength | 260 lb |
| Tensile Strength | 320 lb |
| Kent Complete 3 Location | Drawer N : Row 1 : Column 2 |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.3 lb |
