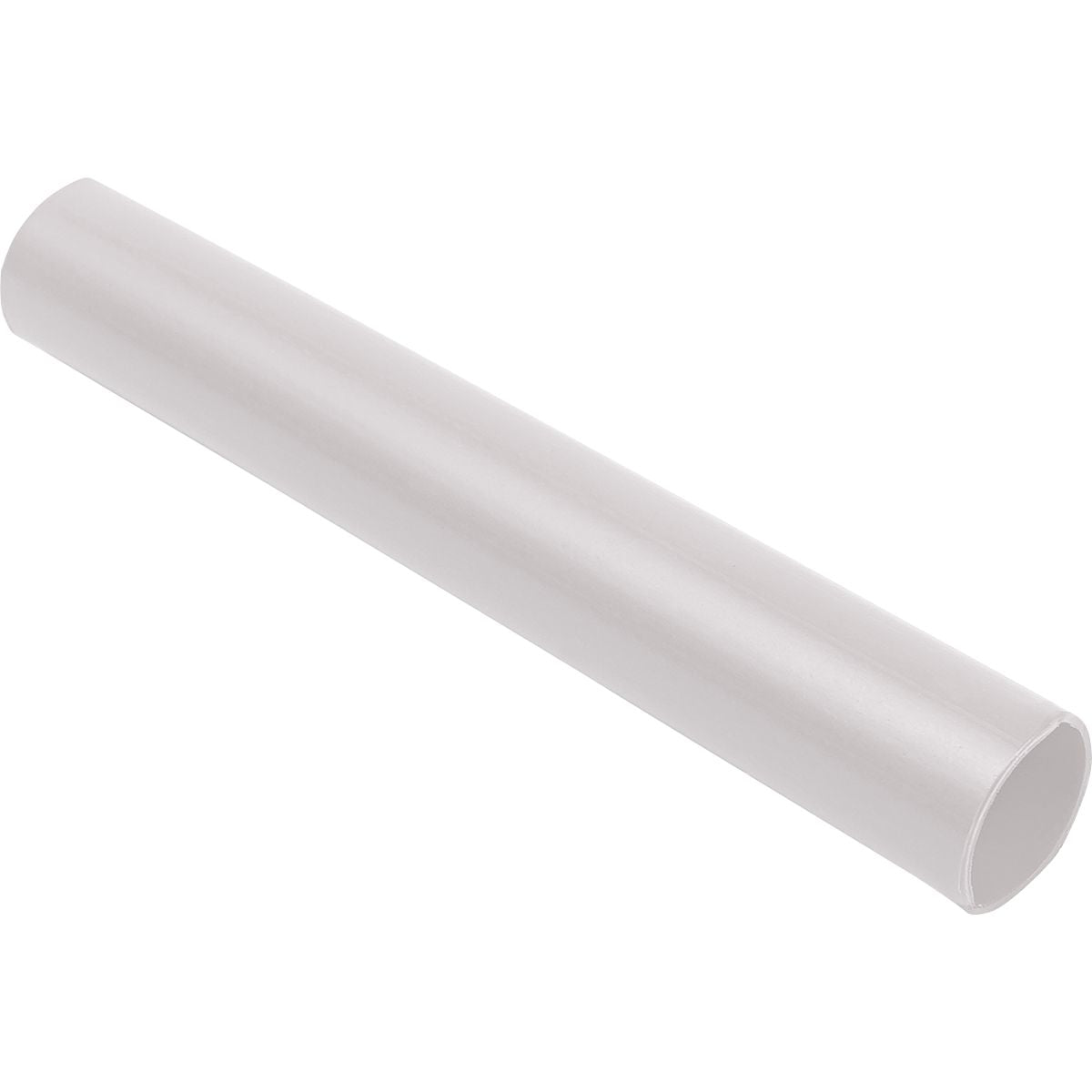

1/4 x 3'' White Thermapod Sealflex Heat Shrink Tube
(Pack of
10.0)
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Couldn't load pickup availability
Frequently Bought Together
Standard Size Alligator Clip 5A Steel Yellow
Couldn't load pickup availability
Multiple-Feature Test Prod with 90° Plugs
Couldn't load pickup availability
Standard Size Alligator Clip 5A Steel Yellow
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 24 to 22 AWG Brown
Couldn't load pickup availability
Heat Shrink Tubing Assortment 4 Items 28Pcs
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Rubber Grommet Assortment 16 Items 220Pcs
Couldn't load pickup availability
Heat Shrink Wire Marker Tag 22 to 18 AWG #2
Couldn't load pickup availability
Flex-Guard Braided Sleeving 3/4"
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880006 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 16-14 AWG |
| Diameter | 1/4 " |
| Length | 3 " |
| Color | White |
| I.D. Before Shrinkage | 0.25 " |
| I.D. After Shrinkage | 0.08 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 1/4 x 3 White |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
