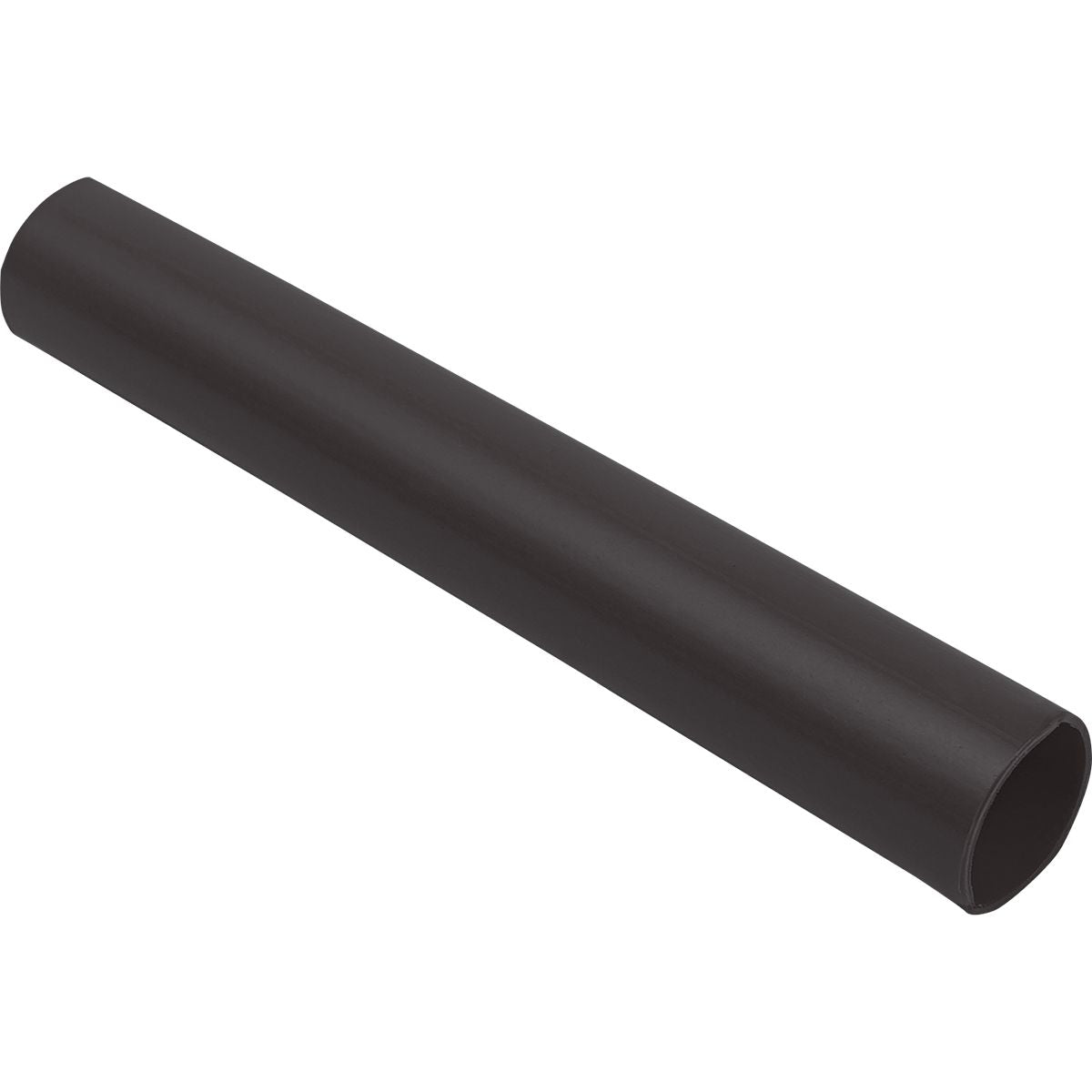

1 x 3" Black Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880014 Item#: DY21880014
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Procell AA Alkaline Battery 1.5V
$0.00
Couldn't load pickup availability
Energizer® AAA Alkaline Battery 1.5V
$0.00
Couldn't load pickup availability
Halogen Miniature Bulb 55/60W 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing Black 0.6 x 12"
$0.00
Couldn't load pickup availability
Heat Shrink Tubing Clear 1.25 x 12"
$0.00
Couldn't load pickup availability
Flow Form Heat Shrink Tubing 2 to 4/0 AWG Black
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Replacement Broom Handle with Threaded End
$0.00
Couldn't load pickup availability
Releasable Nylon Cable Tie 5.5" Black
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Replacement Broom Handle with Threaded End
$0.00
Couldn't load pickup availability
Releasable Nylon Cable Tie 5.5" Black
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
$0.00
Couldn't load pickup availability
1/8 x 3" Brown Thermapod Heat Shrink Tube
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Black
$0.00
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880014 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 4/0-3/0 AWG |
| Diameter | 1 " |
| Length | 3 " |
| Color | Black |
| I.D. Before Shrinkage | 1 " |
| I.D. After Shrinkage | 0.4 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 1 x 3 Black |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.13 lb |
