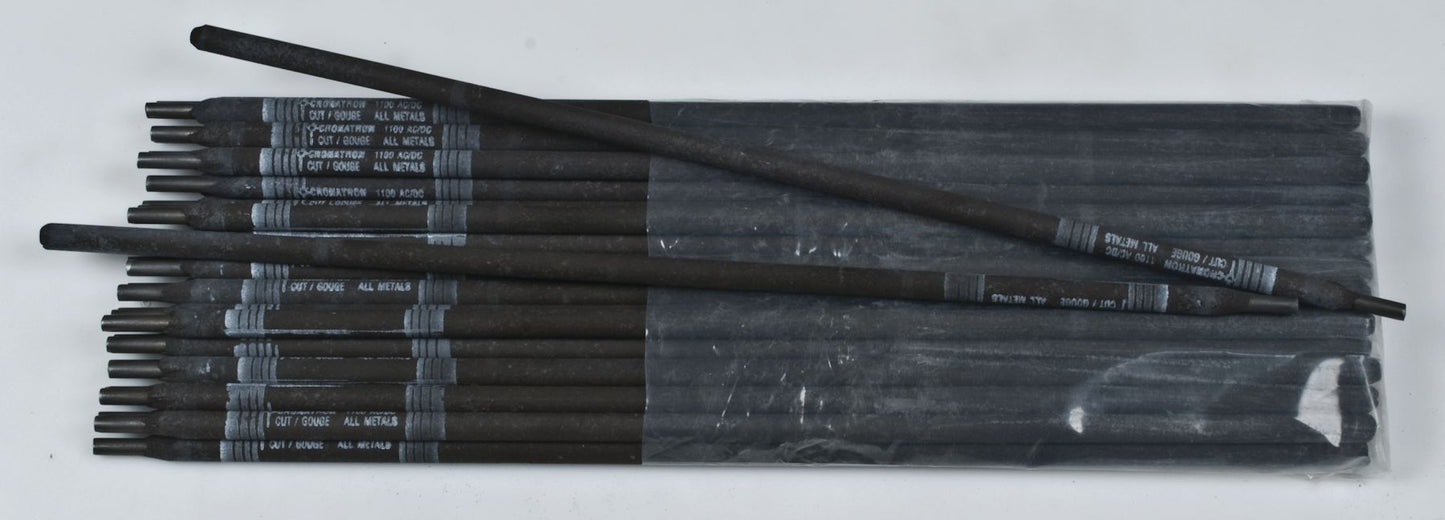

1100 Gouging and Cutting Stick Rod Electrode, 350 to 600 Amps, DCSP/AC Polarity, Smooth Cuts and Efficient Metal Removal, 1/4"
(Pack of
10)
SKU:CW3433 Item#: CW3433
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.
Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Zinc-Rich Weld-Through Primer
Couldn't load pickup availability
Glass Strapping Tape 3/4" x 60 Yards
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 8 x 10"
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
E7014 Mild/Carbon Steel Stick Electrode 5/32
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
704 Mild/Carbon Steel Stick Rod Electrode 5/32"
Couldn't load pickup availability
Product Description
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired position and allow the blasting effect of electrode to penetrate metal.
Technical Specifications
| Item#: | CW3433 |
|---|---|
| Welding Process | Stick |
| Type | Cutting/Gouging |
| Diameter | 1/4 " |
| Length | 18 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
