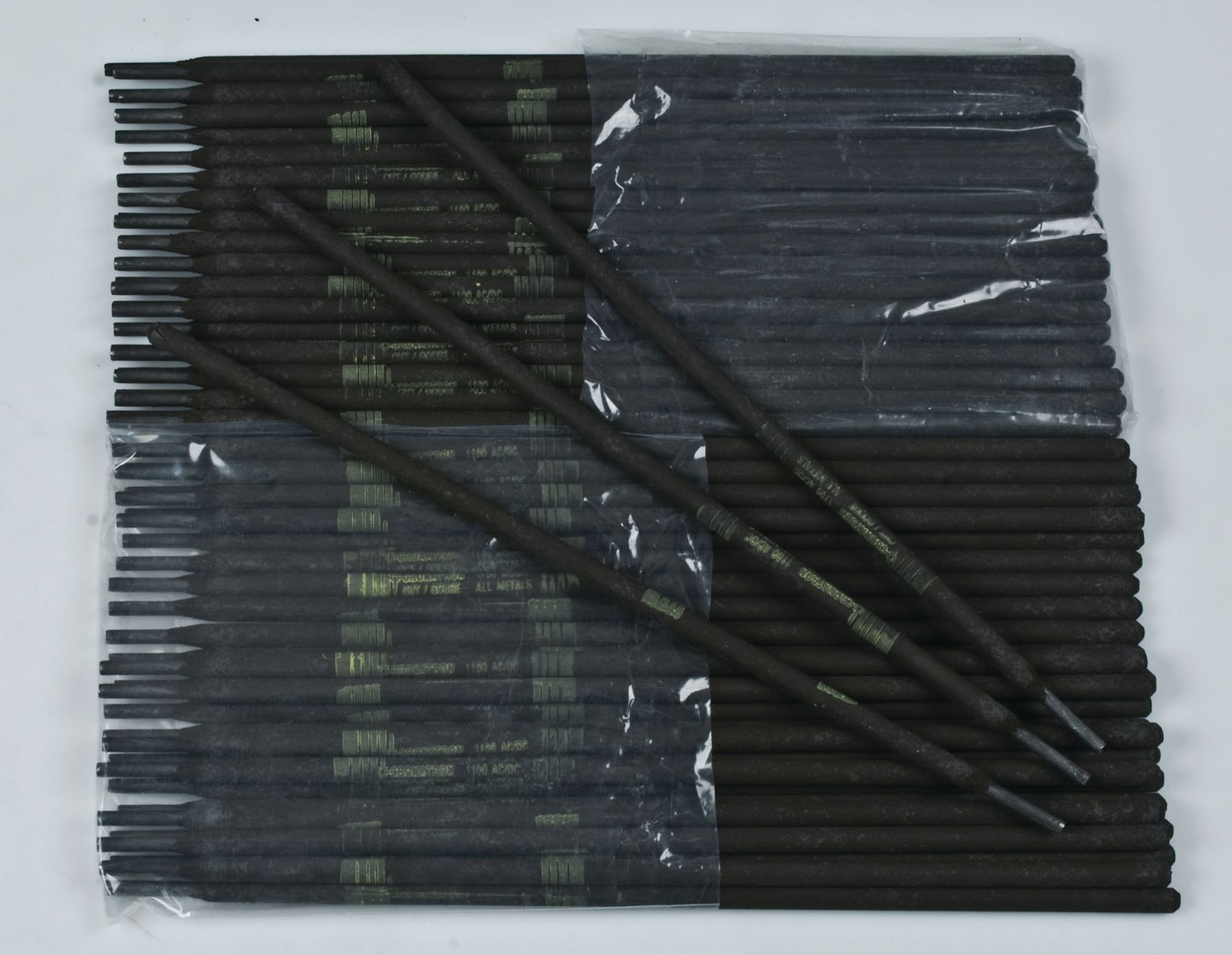

1100 Gouging and Cutting Stick Rod Electrode, 300 to 450 Amps, DCSP/AC Polarity, Smooth Cuts and Efficient Metal Removal, 3/16"
(Pack of
10)
SKU:CW1904 Item#: CW1904
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.
Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired Âposition and allow the blasting effect of electrode to penetrate metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
163 Arc-Cut Synthetic Carbon Arc Electrode
$0.00
Couldn't load pickup availability
338 Mild/Carbon Steel Stick Rod Electrode 1/16"
$0.00
Couldn't load pickup availability
E6010 Mild/Carbon Steel Stick Electrode 1/8"
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
DC Welder Stick/TIG 15-200 A, 115-230V
$0.00
Couldn't load pickup availability
Hand Amp Control 12ft
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
$0.00
Couldn't load pickup availability
Oxy-Therm System
$0.00
Couldn't load pickup availability
Product Description
The ultimate cutting, gouging, piercing, chamfering and grooving electrodes for any type of metal, including stainless steel, Monel®, cast iron and aluminum. Completely outclasses ordinary gouging and cutting electrodes.Superior Advantages
• Provides straight, smooth cuts and efficient metal removal
• Prevents slag pileup and sticking
• Produces a ready-to-weld, clean, carbon-free surface
• Operates with standard welding machines
Polarity: AC or DC Straight
The Ultimate Disintegrator Alloy
Typical Applications
• Cast iron preparation
• Frozen bearing removal
• Vee out cracks
• Pierce and align holes
• Bevel corners, chamfer edges
• Remove old welds
Usage ProcedureUse AC or DC straight polarity only. Point the electrode in the direction of travel and ignite the arc. For shallow chamfers, move quickly along line of cut. To obtain a deeper groove, make successive passes 1/2 the diameter of the electrode. For piercing, place rod in desired Âposition and allow the blasting effect of electrode to penetrate metal.
Technical Specifications
| Item#: | CW1904 |
|---|---|
| Welding Process | Stick |
| Type | Cutting/Gouging |
| Diameter | 3/16 " |
| Length | 14 " |
| Base Metal | Mild & Carbon Steel |
| Polarity | DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.42 lb |
