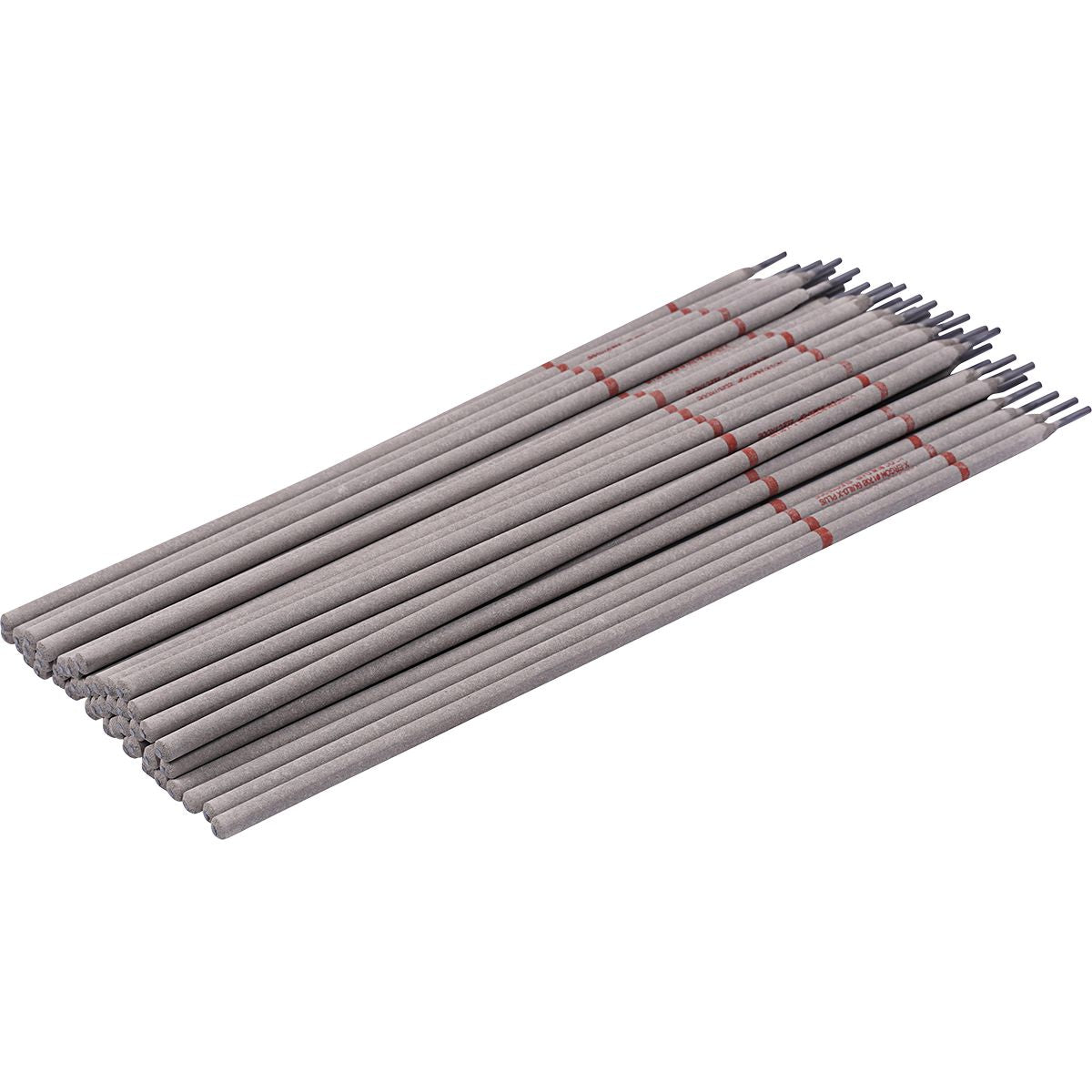

170 For Overlays And Build Up All Position Torchable Polarity Dc Or Ac Hardness 24Rc Tensile 118000 Unlimited Passes
(Pack of
5)
SKU:EG1702000B Item#: EG1702000B
Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.
• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.
Frequently Bought Together
7770 Hard Facing Buildup Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
706 Hard Facing Buildup Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
706 Hard Facing Buildup Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
7109 Austenitic Hard Facing Welding Wire 0.045"
$0.00
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
$0.00
Couldn't load pickup availability
777 Austenitic Hard Facing Stick Electrode 5/32"
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Plastic Outside Corner Small Wave Welder Staple
$0.00
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
$0.00
Couldn't load pickup availability
606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire
$0.00
Couldn't load pickup availability
3/4" X 24" Pinch Pry Bar
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Product Description
Designed to provide sound weldments and overlays free of underbead cracks, which is essential for heavy buildup deposits on high-carbon and abrasion-resistant steels.• All-Position – Allows build-up any position
• Torch Cuttable – Makes repairs easy
• High Deposition – Fast and economical
• Chrome-Moly Deposit – High-strength, high impact-resistance, heat-treatable
• Machinable
• Tensile Strength: 118,000 PSI/814 Mpa
• Yield Strength: 13,000 PSI/779 Mpa
• Hardness: 24 Rc
• Machinability: Good (carbide tools)
• Max Number of Passes: Unlimited
• Current: DC or AC
Remove fatigued metal. Preheat according to base metal type. Build up to desired dimensions using minimal amperage and heat input. Maintain short arc gap and allow to slow cool.
Technical Specifications
| Item#: | EG1702000B |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/16 " |
| Base Metal | Carbon And Alloy Steels |
| Hardness | 24 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.17 lb |
