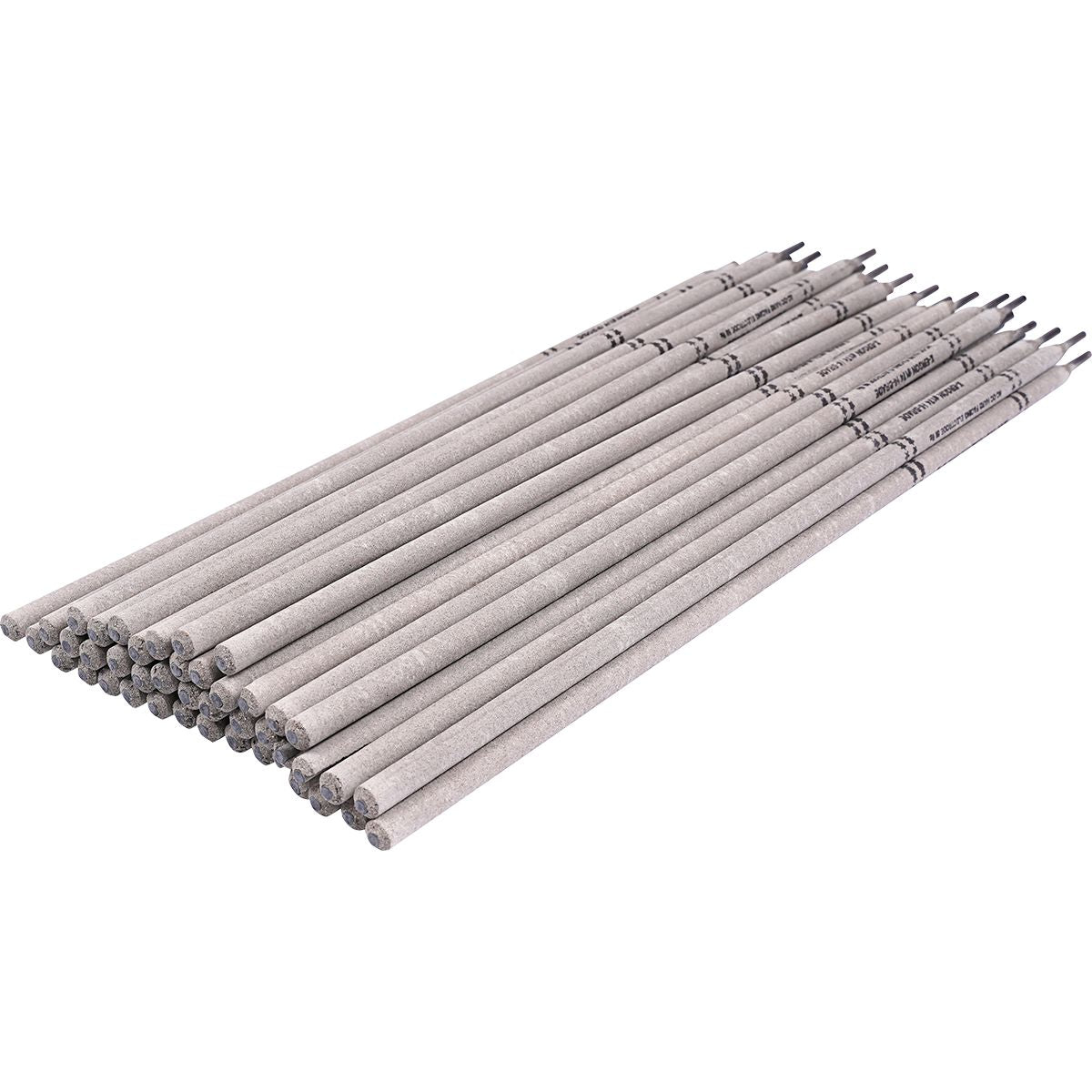

Home Hardfacing Alloys 174 Gray High Abrasion Moderate Impact 1/8
Hardfacing Alloys

174 Produces Iron Chromium Carbides High Deposition Hardness 58Rc 3Passes Max Polarity Decep Or Ac For Carbon Steels Or Manganese
(Pack of 5)

Kent Automotive

Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.
• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss

Read More
Check Availability

Frequently Bought Together


777 Austenitic Hard Facing Stick Electrode 5/32"

Item#: CW1062

676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

Item#: EG67680045

750 Martensitic Stick Rod Electrode 5/32"

Item#: CS1515

711 Carbide Hard Facing Stick Rod Electrode 3/16"

Item#: CW1064

7350 Carbide Hard Facing Stick Rod Electrode 1/2"

Item#: CW1917

7230 Carbide Hard Facing Stick Rod Electrode 3/8"

Item#: CW1910

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

High-Tech Seam Sealer Clear 5fl.oz

Item#: P10200

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Heat Stick 850F Degrees

Item#: EG70900850

Cap Whip-Lead Connector #4 to #1

Item#: CW1359

Oxygen Safety Cap Heavy Duty

Item#: CW5853

Product Description

Produces iron-chromium carbides, which exhibit exceptional hardness and abrasive wear resistance.
• High Deposition Rate – Economical for fast overlays
• High Abrasion Resistance – Particularly sliding and scratching modes of abrasion
• Impact-Resistant – Handles moderate levels of impact
• Resists hot wear to 1000°F/586°C
• Smooth running
• Deposits will cross check crack for stress relief
• For use on carbon and abrasion-resistant alloy steels including manganese steels
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 171.17 mm³ vol. loss

Technical Specifications

Item#: EG17440000
Welding Process Stick
Type Electrode
Diameter 1/8 "
Base Metal Steel To Steel
Hardness 58 HRC
Polarity DCEP
UNSPSC #: 23271810
TAA Compliant: Yes
Weight: 6.06 lb
