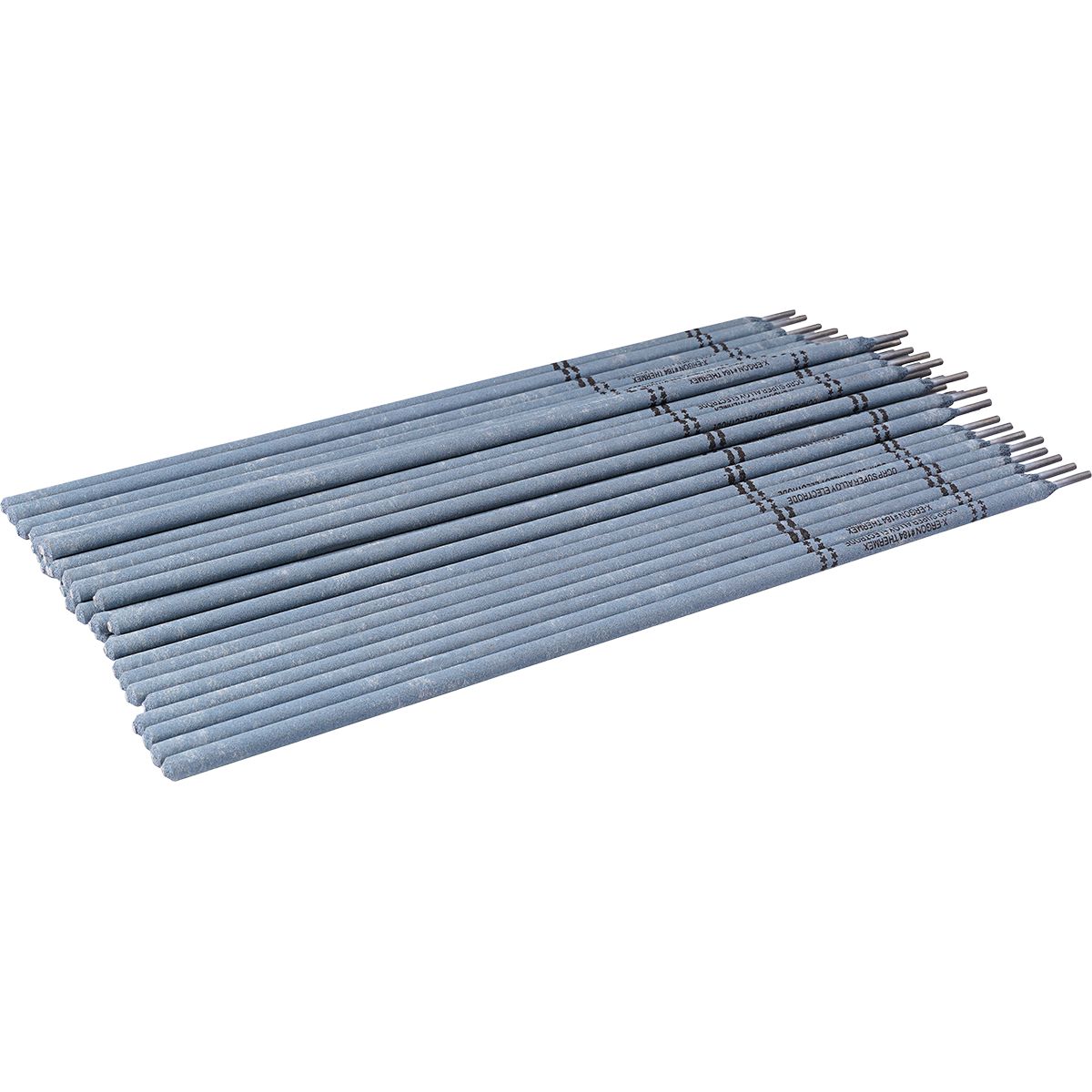

184 High Nickel High Strength High Corosion Resistant Tensile 110000 Polarity Dcep Elongation 30% 21Rc Heat Resistant 1800 F
(Pack of
5)
SKU:EG18440000 Item#: EG18440000
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability.
Versatile Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
Corrosion Resistant Highly resistant to chloride pitting and stress corrosion cracking
Excellent for dissimilar nickel alloys and nickel to ferrous alloys
Excellent for cryogenic applications
Heat resistant to 1800°F/982°C
Resists cracking when heated and cooled repeatedly
Tensile Strength: 110,000 PSI/758 MPa
Yield Strength: 95,000 PSI/655 MPa
Hardness: 21 Rc
Elevated Temperature Tensile Data: 1000°F/538°C: 85,000 PSI/586 MPa 1800°F/982°C: 25,000 PSI/172 MPa
Elongation: 30%
Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
Current: DCEP (DC+)
Couldn't load pickup availability
Frequently Bought Together
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
$0.00
Couldn't load pickup availability
126 Stainless Steel Stick Electrode 5/64
$0.00
Couldn't load pickup availability
126 Stainless Steel Stick Electrode 3/32
$0.00
Couldn't load pickup availability
DINSE Adapter 50 Female to 25 Male
$0.00
Couldn't load pickup availability
Connector DINSE 10-25 Female
$0.00
Couldn't load pickup availability
Electrode Holder 200A /w 10' Cable
$0.00
Couldn't load pickup availability
9-6506 Plasma Cutting Electrode
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
$0.00
Couldn't load pickup availability
Product Description
A maximum-strength alloy with high nickel and molybdenum content that provides outstanding corrosion and heat resistance. Columbium alloy additions increase weld stability. Versatile Well suited for welding Inconel 625, 706, 718 and X-750; Incoloy 800 and 825; Monel alloy K-500; Ferralium 255, Hastelloy B, C or G, and Carpenter 20 Cb and combinations of these alloys
Corrosion Resistant Highly resistant to chloride pitting and stress corrosion cracking
Excellent for dissimilar nickel alloys and nickel to ferrous alloys
Excellent for cryogenic applications
Heat resistant to 1800°F/982°C
Resists cracking when heated and cooled repeatedly
Tensile Strength: 110,000 PSI/758 MPa
Yield Strength: 95,000 PSI/655 MPa
Hardness: 21 Rc
Elevated Temperature Tensile Data: 1000°F/538°C: 85,000 PSI/586 MPa 1800°F/982°C: 25,000 PSI/172 MPa
Elongation: 30%
Impact Strength (Charpy): 48 ft.-lbs. @ -320°F/-196°C
Current: DCEP (DC+)
Technical Specifications
| Item#: | EG18440000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 1/8 " |
| Tensile Strength | 110,000 PSI |
| Yield Strength | 95,000 PSI |
| Base Metal | Nickel Alloys; Dissimilar Metals |
| Hardness | 21 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.14 lb |
Product Resources
View additional documents HERE . Additional languages available.
