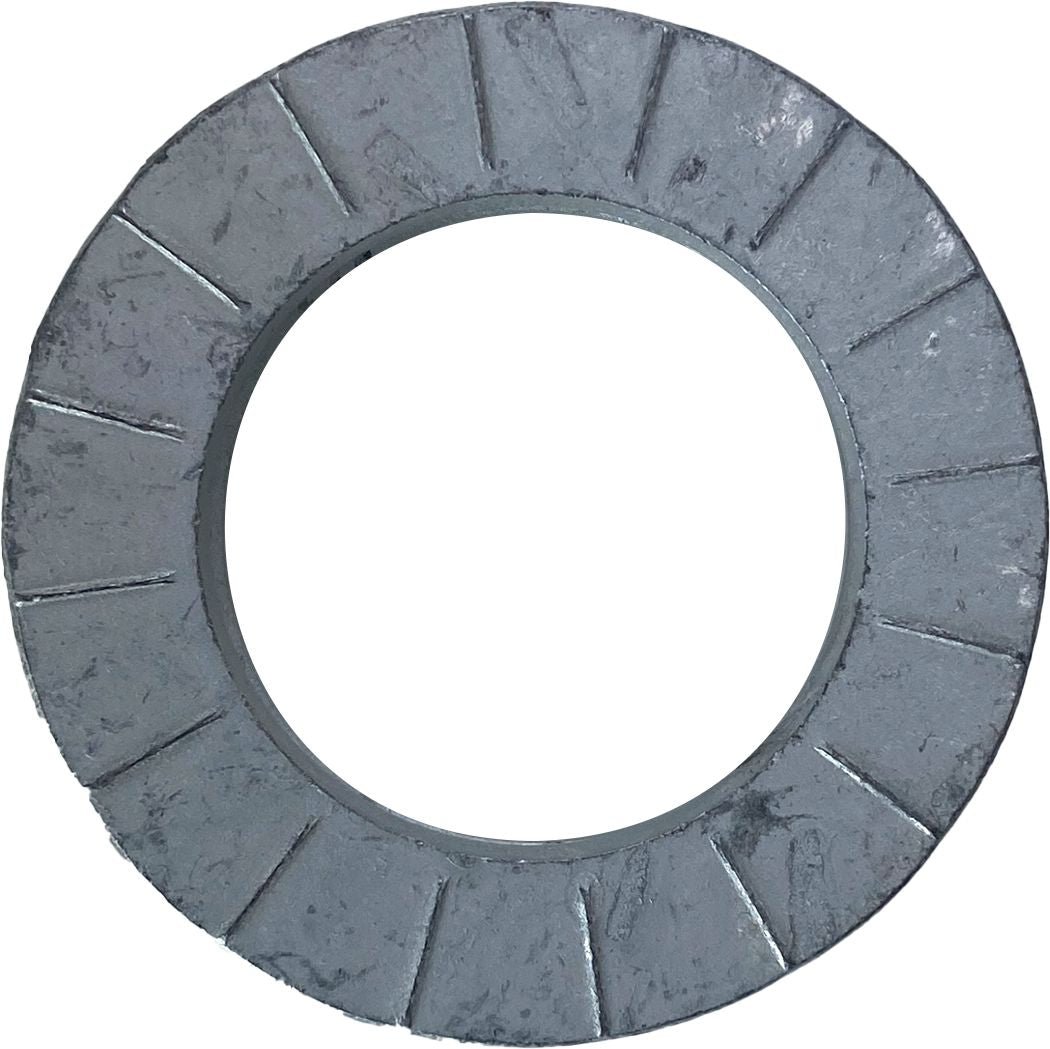

1In Standard Anti-Vibration Serated Self Lock Washer
(Pack of
4)
SKU:DY03683700 Item#: DY03683700
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
DIN 125A Flat Washer Grade 140 HV M8
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
$0.00
Couldn't load pickup availability
Lock Washer Alloy Steel 1/4"
$0.00
Couldn't load pickup availability
Lock Washer Non-Linking Steel 3/8"
$0.00
Couldn't load pickup availability
DIN 127B Standard Lock Washer M10
$0.00
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
ARO 210 Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 3/8" Body x 3/8" MNPT
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
DIN 9021B Fender Washer Low Carbon Steel 18mm
$0.00
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
$0.00
Couldn't load pickup availability
Fender Washer Standard Steel 1-1/4"
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr
$0.00
Couldn't load pickup availability
Universal Impact Socket Adapter 3/4Dr
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr
$0.00
Couldn't load pickup availability
Universal Impact Socket Adapter 3/4Dr
$0.00
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03683700 |
|---|---|
| Nominal Size | 1 " |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 1.10 " |
| O.D. | 1.54 " |
| Finish | Delta Protekt® |
| Thickness | 0.13 " |
| Quantity Per Package | 4.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
