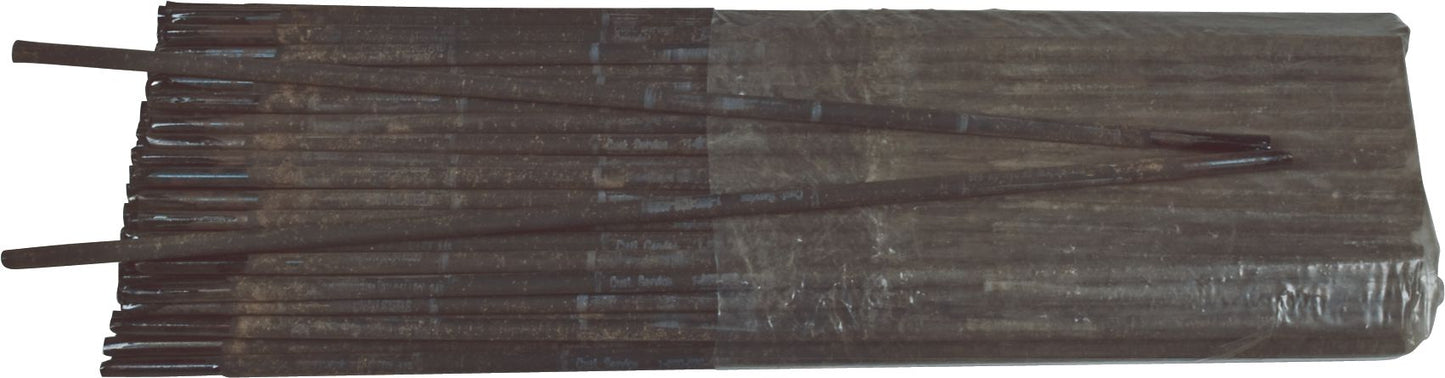

246 Carbide Hard Facing Stick Rod Electrode 1/4"
(Pack of
15.0)
Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
706 Hard Facing Buildup Stick Rod Electrode 1/8"
Couldn't load pickup availability
246 Carbide Hard Facing Stick Rod Electrode 1/2"
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode 1/4"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
178 Ultimate Abrasion Resistance 3/8X18IN
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 1/8
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Heat Stick 650F Degrees
Couldn't load pickup availability
Heat Stick 850F Degrees
Couldn't load pickup availability
Cap Whip-Lead Connector #4 to #1
Couldn't load pickup availability
Product Description
Designed for high abrasion resistance in low to moderate impact situations.Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 60 (2nd pass)No. of Passes: Three maximumPolarity: AC or DC
Use on manganese and carbon steels
Applications
• Dredge pumps
• Screw conveyors
• Chutes for transporting sand and gravel
• Bucket lips
• Skid pads
Usage ProcedureUse AC or DC reverse polarity. Direct electrode 90° to applying surface. Use 1/4" 7355 for out-of-position welding.
Technical Specifications
| Item#: | P12999 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 1/4 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Chromium |
| Hardness | 50-60 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 15.4 lb |
