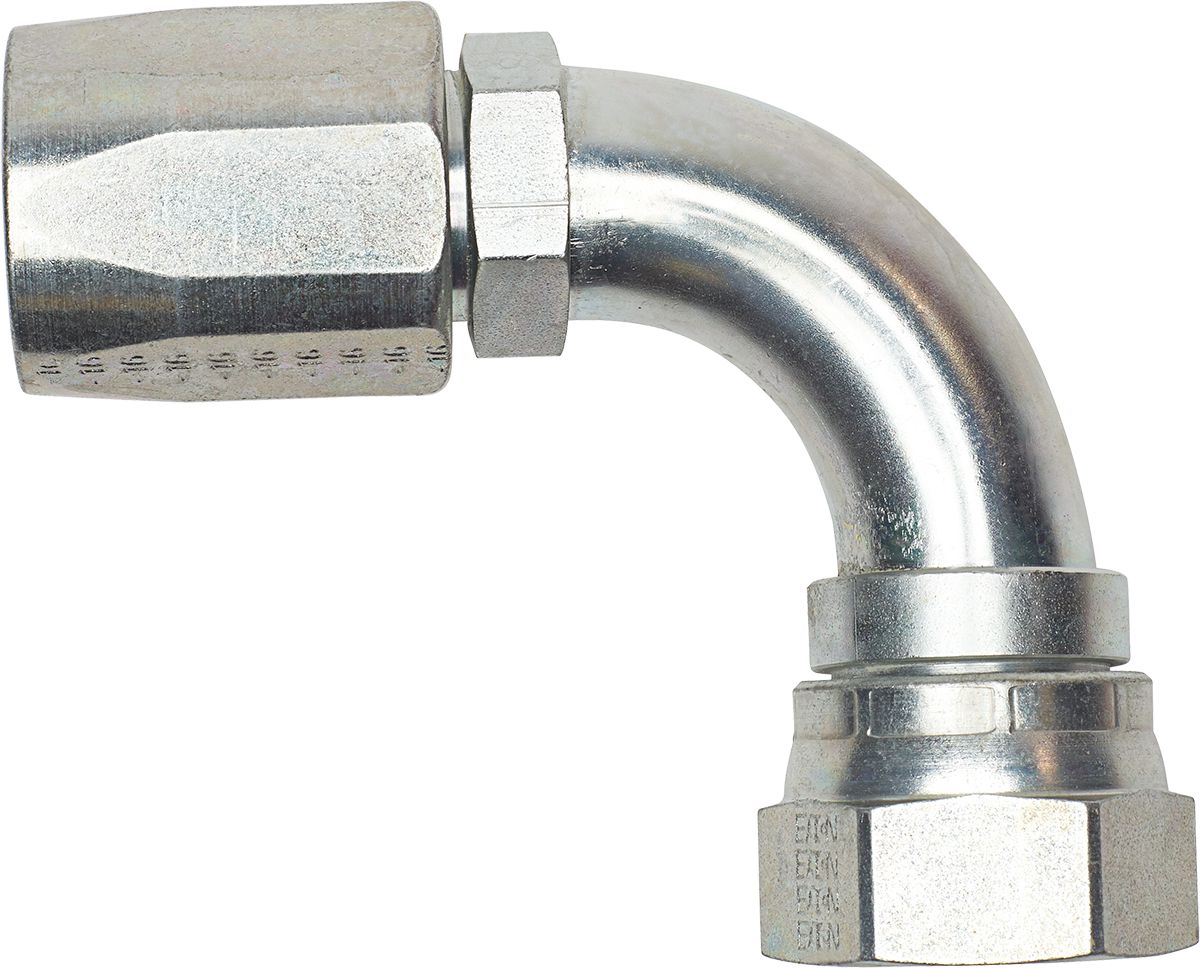

247N Series Field Attachable Elbow, Carbon Steel, Female JIC 37°, Flare 90°, 5/16" (-6) x 9/16-18 (-6)
(Pack of
1)
SKU:82868 Item#: 82868
Power Steering Fittings – Special SAE Male Inverted Flares
• Fittings are mandrelless-type
82862 through 82865 – Universal (SAE 45° or JIC 37°)82866 and 82867 – SAE 45°82868 through 82870 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Frequently Bought Together
06Z-BC66- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174483
$0.00
Couldn't load pickup availability
06Z-BC06- Hose End (perm) 1S/1R Str Male STC
Item#: 1172945
$0.00
Couldn't load pickup availability
Valve Core 210VC 733204045
Item#: 1641222
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
Item#: P27020
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555862
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
Item#: KT13010
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Item#: P64102M01
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Item#: 1585088
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Item#: 54542
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Product Description
Power Steering Fittings – Special SAE Male Inverted Flares• Fittings are mandrelless-type
82862 through 82865 – Universal (SAE 45° or JIC 37°)82866 and 82867 – SAE 45°82868 through 82870 – JIC 37°
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Technical Specifications
| Item#: | 82868 |
|---|---|
| Manufacturer Model #: | 24706N-666 |
| Manufacturer Series Number | 247 N Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 5/16 (-6) " |
| Dash Size | -6 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Drop Length | Short |
| Fitting Dimension B (Working End) | 9/16-18 (-6) |
| O.D. Tube Size | 3/8 " |
| Size | (-6)X(-6) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
