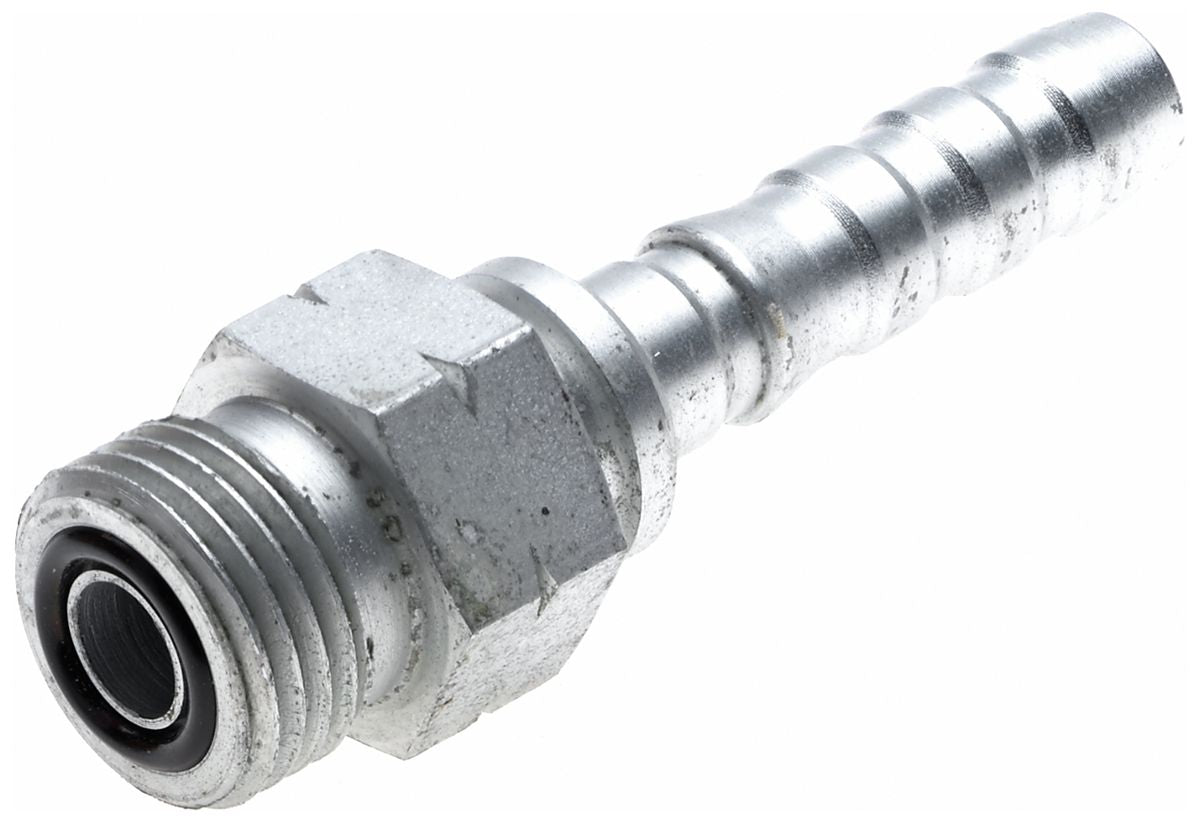

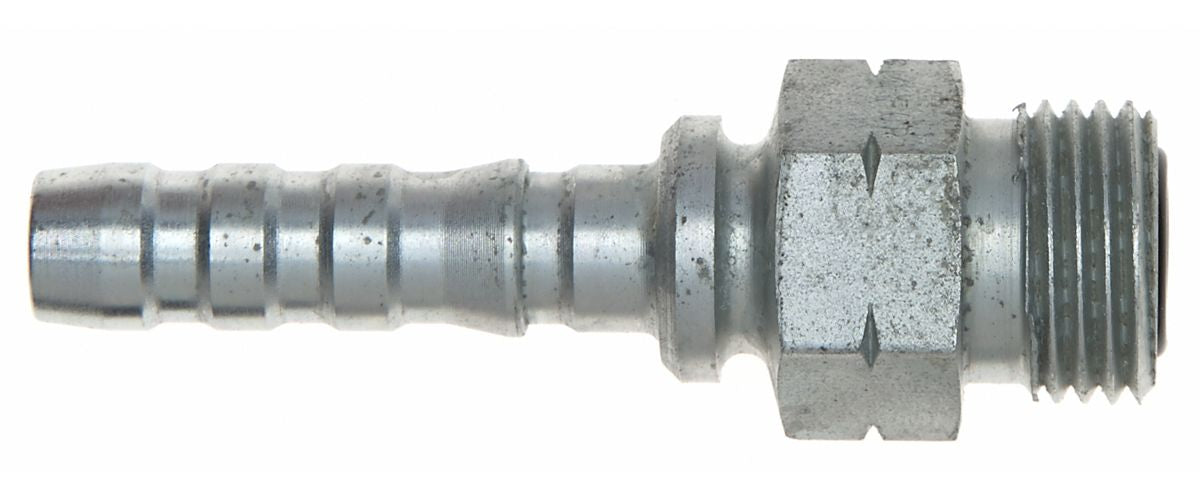

GlobalSpiral Coupler, O-Ring Face Seal, Straight Type, 1/2" (-8) x 13/16-16" (-8), 0.5" Hose I.D., 2.68" Length, Steel, 6000 PSI
(Pack of
1)
SKU:1644512 Item#: 1644512
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. Coated with TuffCoat™ plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
• Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
• Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
• Surpasses one million impulse cycles
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

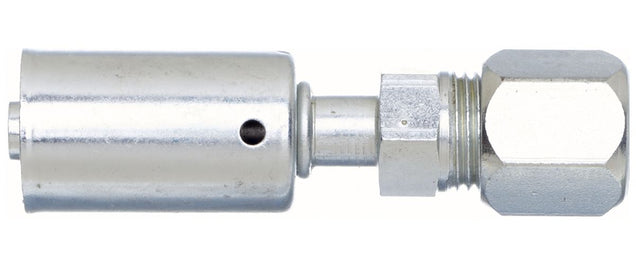

PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability

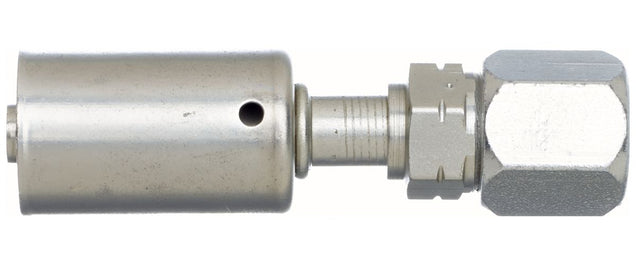

PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 400'
$0.00
Couldn't load pickup availability
10MFFOR-10MFFOR-10MFFOR Adapters
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Product Description
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. Coated with TuffCoat™ plating - more than five times better corrosion resistance than SAE ASTMB117 specification.• Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
• Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
• Surpasses one million impulse cycles
Technical Specifications
| Item#: | 1644512 |
|---|---|
| Manufacturer Model #: | 8GS-8MFFOR |
| Fitting Dimension A (Hose) | 0.5 " |
| Dash Size | 8 |
| Fitting End Type | O-Ring Face Seal |
| Fitting Dimension B (Hose) | 1/2 " |
| Thread Size | 13/16-16 " |
| Size | 8 " |
| Material | Steel |
| Finish | TuffCoat™ |
| UNSPSC #: | 31163000 |
| TAA Compliant: | Yes |
