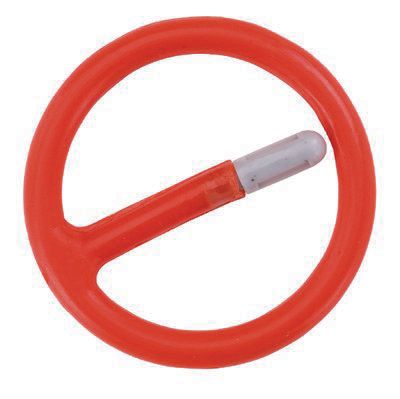

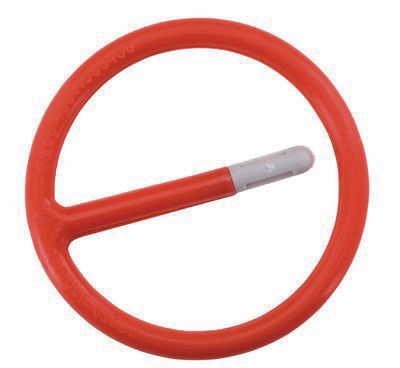

3/4" Drive Retaining Ring 1-7/16" Groove
(Pack of 1)

SKU:1228524 Item#: 1228524

Proto®

• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• Designed with a resin crush gauge to help identify when to replace worn sockets
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• One piece construction, no loose parts
• Pin is made of resin which allows the material to compress without breaking
• Retaining rings are used to help secure sockets onto drive tools
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• The rotational forces are between the drive tool and the socket
• They are not intended to bear any load
• This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced

Quantity

Frequently Bought Together

Spinning Handmaster Driver Set 5Pc Set

Item#: DY89310460

Universal Socket Set, Metric, 3/8" Drive, 12pc

Item#: DY89320204

100 Piece, 1/4" Shank Master Bit Set

Impact Retaining Ring, 3/4" Drive, 3/16" to 1-3/4"

Impact Retaining Ring, 3/4" Drive, 3/16" to 1-3/4"

3/4" Dr Retaining Ring Cush Gauge 1-5/8"

Fender Splash Shield Push Rivet Nylon 7mm Hole

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Front Fender Liner Push-Type Retainer Nylon 20mm

No product placeholder

Set Extension Chrome 3/8Dr Wobble 8Pc

Item#: ZZ24447F64

1/2" Drive Deep Impact Socket, 7/16"

1/2" Drive Standard Impact Socket, 20mm

12" Auto-Adjust Pliers

Item#: DY89310303

Spot Weld Remover Drill Bit HSS 2-3/4" (M8)

Spot Weld Remover Drill Bit Cobalt 5/16" (M8)

Product Description

• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• Designed with a resin crush gauge to help identify when to replace worn sockets
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• One piece construction, no loose parts
• Pin is made of resin which allows the material to compress without breaking
• Retaining rings are used to help secure sockets onto drive tools
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• The rotational forces are between the drive tool and the socket
• They are not intended to bear any load
• This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced

Technical Specifications

Item#:	1228524
Manufacturer Model #:	JRR07523
Type	Retaining Ring
Drive Size	3/4 "
Length	1.624 "
UPC	662679978013
Socket Groove Diameter	1 7/16 "
UNSPSC #:	27000000
TAA Compliant:	Yes
