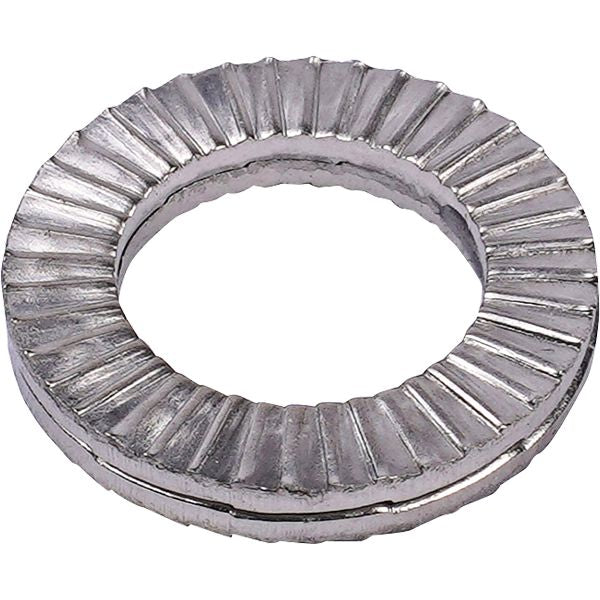

3/8 Standard 316 SS Anti-Vibration Serated Self Lock Washer
(Pack of
4)
SKU:DY10342100 Item#: DY10342100
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
Couldn't load pickup availability
DIN 127B Lock Washer A4 Stainless Steel M8
Couldn't load pickup availability
Lock Washer Self-Locking Steel 1"
Couldn't load pickup availability
DIN 127B Lock Washer A2 Stainless Steel M2.5
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 5/16"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• 316L Stainless Steel
Technical Specifications
| Item#: | DY10342100 |
|---|---|
| Nominal Size | 3/8 " |
| Type | Serrated Self Lock Washers |
| Material | Stainless Steel |
| I.D. | 0.41 " |
| O.D. | 0.65 " |
| Thickness | 0.08 " |
| Grade | 316L |
| Quantity Per Package | 4.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.025 lb |
