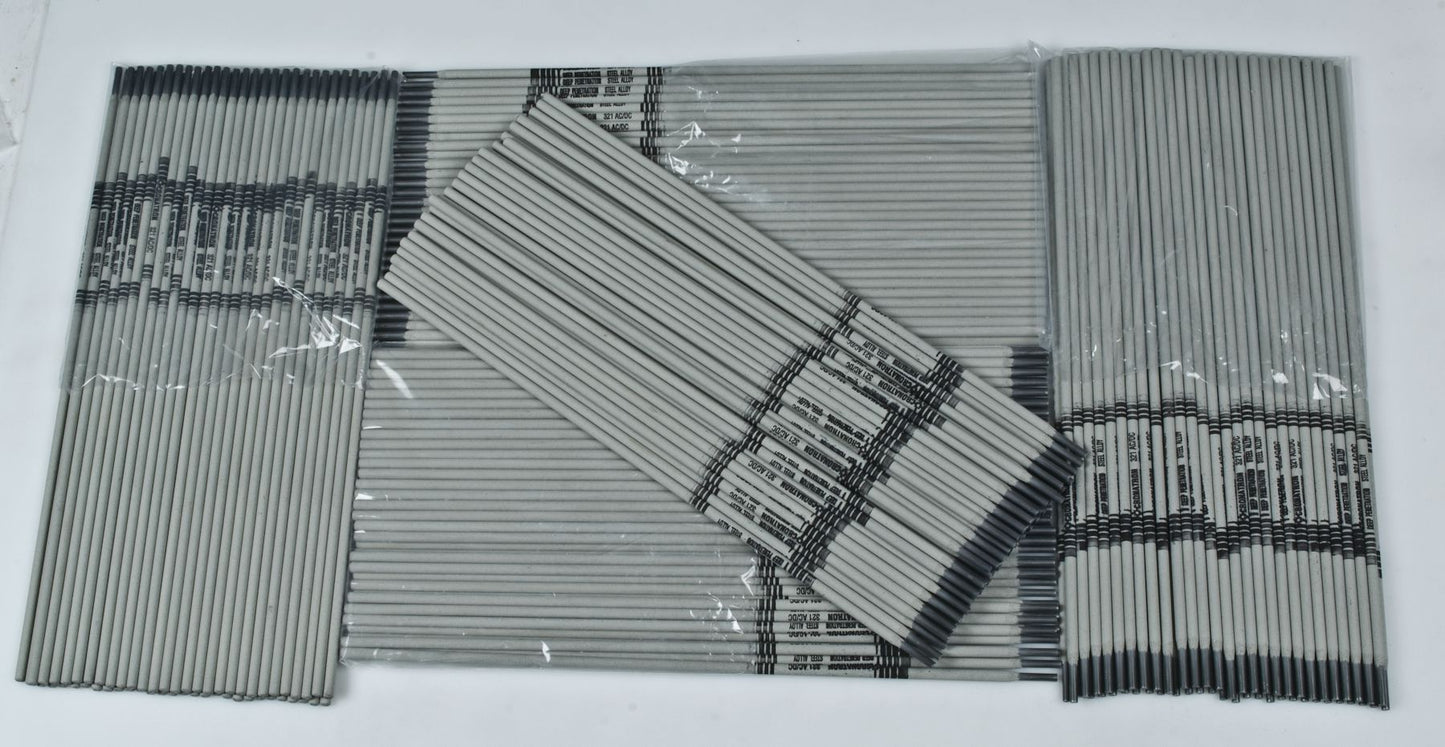

321 Mild and Carbon Steel Stick Rod Electrode, Flux Coated, 75 to 80 HRB Hardness, 110 to 170 Amps, DCRP/AC Polarity, 5/32"
(Pack of
25)
SKU:CW1809 Item#: CW1809
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.
Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
Tensile Strength: 76,000 PSI
Yield Strength: 66,000 PSI
Hardness: Rb 75-80
Polarity: AC or DC Reverse
Typical Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc to reduce heat buildup in the base metal and keep distortion to a minimum. Weaving is seldom necessary, except when welding vertical-up. Pass-over-pass can be deposited without chipping slag. Slag coverage chips off easily after cooling. Machine or grind to desired dimensions.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
$0.00
Couldn't load pickup availability
311 Mild and Carbon Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Plastic Welder Staple Assortment 400Pcs
$0.00
Couldn't load pickup availability
Weldpro AC/DC TIG and Stick Welder Kit
$0.00
Couldn't load pickup availability
Plastic Inside Corner No Wave Welder Staple
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
Product Description
Formulated to cut through rust and other contaminants, providing solid, sound and dense weld deposits on all types of mild steel.Superior Advantages
• Saves time – welds through all types of contaminants
• Deep penetrating for pipe root passes
• Produces strong, dense weld deposits
Tensile Strength: 76,000 PSI
Yield Strength: 66,000 PSI
Hardness: Rb 75-80
Polarity: AC or DC Reverse
Typical Applications
• Sheet, plates, angles, beams, channels and joining of all mild steel structures
• Galvanized sheet
• Machinery and machine parts
• Automotive and truck bodies
• Pipes, tanks, containers
Usage ProcedureMaintain a short arc to reduce heat buildup in the base metal and keep distortion to a minimum. Weaving is seldom necessary, except when welding vertical-up. Pass-over-pass can be deposited without chipping slag. Slag coverage chips off easily after cooling. Machine or grind to desired dimensions.
Technical Specifications
| Item#: | CW1809 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 5/32 " |
| Tensile Strength | 76,000 PSI |
| Yield Strength | 66,000 PSI |
| Base Metal | Mild & Carbon Steel |
| Hardness | 75-80 HRB |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 26.5 lb |
