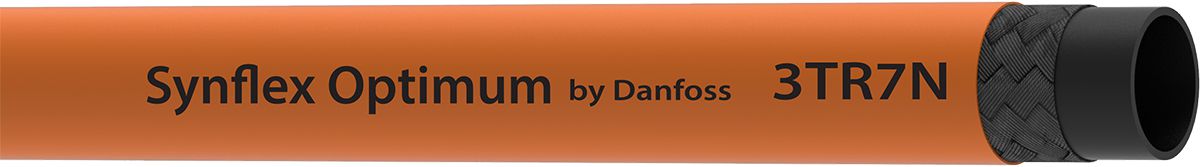

3TR7N, Hydraulic Hose, 1 Textile Braid, 1/4 (-4) " I.D., 250' Length, 3,050 PSI, SAE 100R7
(Pack of
250)
SKU:1677598 Item#: 1677598
• Agency Rating: 100R7
• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.75" x 50'
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.66" x 50'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 250'
Couldn't load pickup availability
Product Description
• Agency Rating: 100R7• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Technical Specifications
| Item#: | 1677598 |
|---|---|
| Manufacturer Model #: | 3TR7N-04-250BX |
| Type | Thermoplastic Hose |
| Category / Performance | Constant Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3TR7N |
| Manufacturer Series Name | Synflex |
| Dash Size | -4 |
| Working Pressure | 3,050 PSI |
| Burst Pressure | 11,000 PSI |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 1 Textile Braid |
| Hose Cover Material | Non-Stick Polyurethane 3TR7N Non-perforated |
| Fitting Series | 4TA Series, 1A/Z Series with Sleeve and 901/902 Series |
| Temperature | Oil Basedluids = -40F to +212F / Water Basedluids = -40F to +150 F |
| Color | Orange |
| Size | 1/4 (-4) " |
| Length | 250 ft |
| SynFlex Part No. | 3TR7N-04-250BX |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 15.79 lb |
