SAE R16S Hydraulic Hose, Rubber, 2-Steel Braided, 3/8" ID, 0.67" OD, 400' Length, 2.5" Bend Radius, 4,750 PSI
(Pack of
400)
SKU:1562963A Item#: 1562963A
• Agency Ratings: SAE 100R16S
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Frequently Bought Together
3TR8 Hydraulic Thermoplastic Hose 0.59" x 50'
$0.00
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.58" x 50'
$0.00
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
$0.00
Couldn't load pickup availability

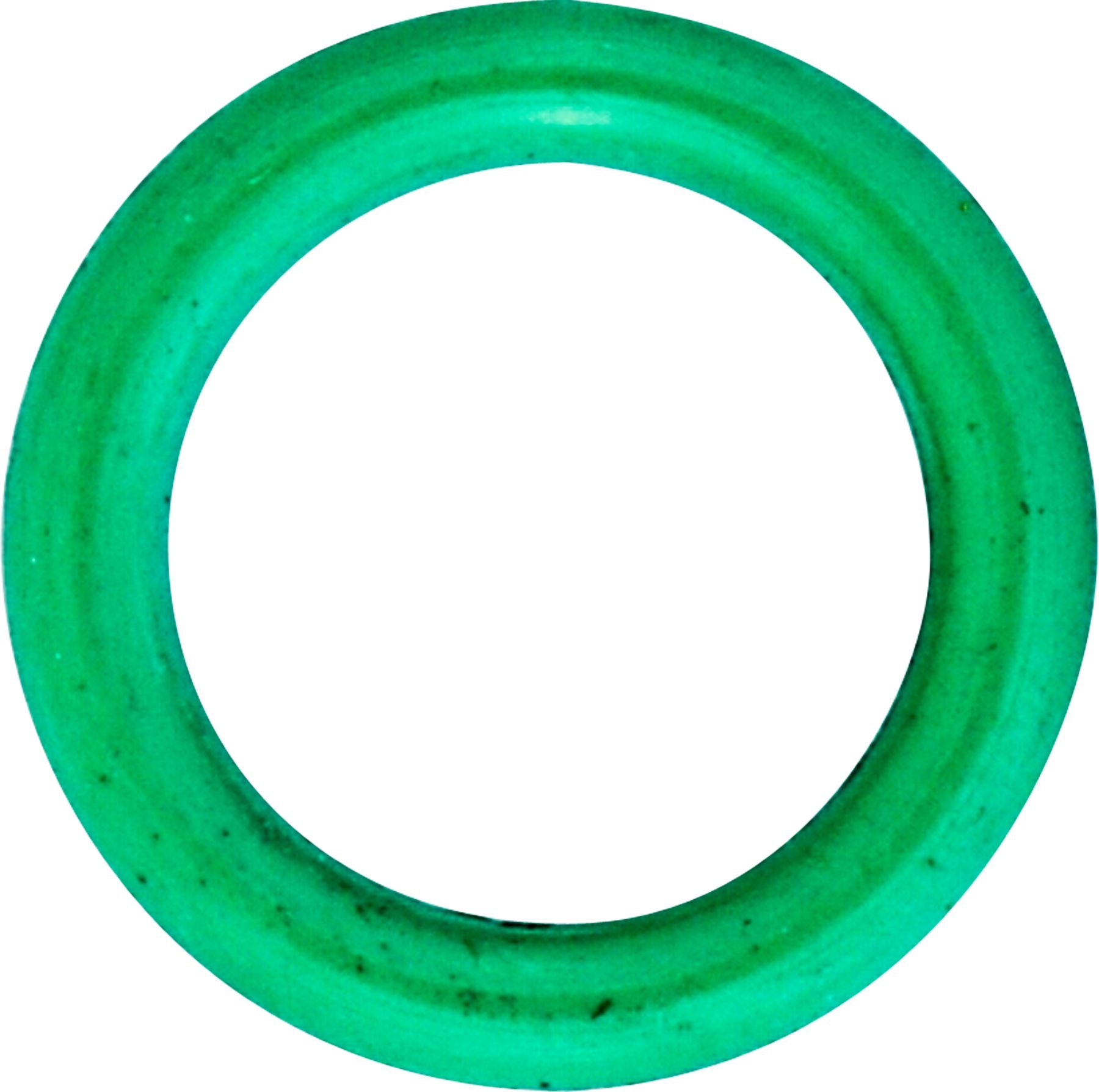

Air Conditioning O-Ring HNBR Green
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.7 x 15.5mm
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 5/8" x 50'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 15'
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16S• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562963A |
|---|---|
| Manufacturer Model #: | R16S-06-400 |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R16S |
| Industry Rating 2 | MSHA |
| Manufacturer Series Number | SAE R16S |
| Manufacturer Series Name | Kurt |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 0.67 " |
| Working Pressure | 4,750 PSI |
| Burst Pressure | 19,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 2.5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Length | 400 ft |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
