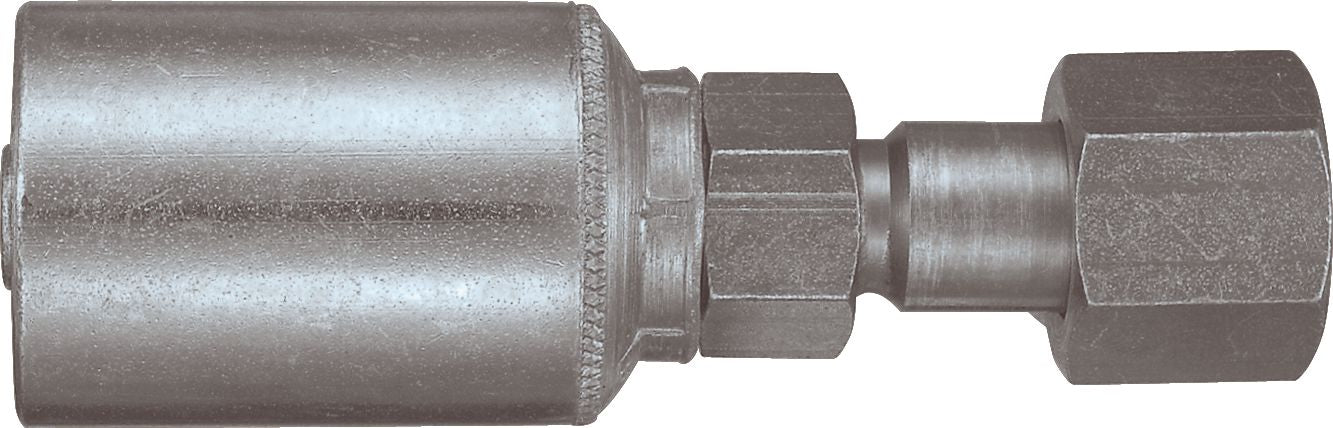

430U Series Crimp-On Hose End, Carbon Steel, Female Swivel Flat Face O-Ring Seal, Straight, 1" (-16) x 1-11/16-12
(Pack of
1)
SKU:63570 Item#: 63570
430U Series Crimp-On Hose End, Carbon Steel, Female Swivel Flat Face O-Ring Seal, Straight, 1" (-16) x 1-11/16-12
Read MoreFrequently Bought Together
FF12139
Item#: 1182613
$0.00
Couldn't load pickup availability
08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC
Item#: 1184318
$0.00
Couldn't load pickup availability
06Z-BC08- Hose End (perm) 1S/1R Str Male STC
Item#: 1179575
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
Item#: 1643557
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
Item#: 1641246
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
Item#: 1647577
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Item#: KT15127
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT15123
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Item#: P63942M01
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
Item#: 1500739
$0.00
Couldn't load pickup availability
Product Description
430U Series Crimp-On Hose End, Carbon Steel, Female Swivel Flat Face O-Ring Seal, Straight, 1" (-16) x 1-11/16-12Technical Specifications
| Item#: | 63570 |
|---|---|
| Manufacturer Model #: | 43016U-S80 |
| Manufacturer Series Number | 430U Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-11/16-12 (-20) |
| Weatherhead No. | 43016U-S80 |
| O.D. Tube Size | 1-1/4 |
| Size | (-16)X(-20) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.475 lb |
