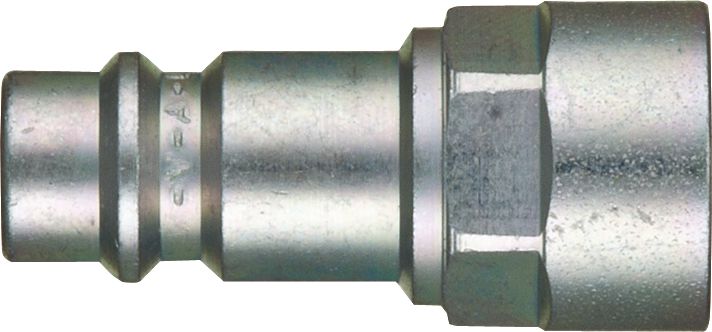

Push-Button Coupler Plug, Steel, High Flow, 175PSI Maximum Working Pressure, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of 1)

SKU:KT15127 Item#: KT15127

Kent Automotive

• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns

Check Availability

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 10-41

Frequently Bought Together

Heavy-Duty Quick Disconnect Plug Steel 1/4 x 1/4"

Quick Disconnect Coupler Steel 1/2" x 3/8-18

Coupler, Industrial, 1/4'' Body, 3/8-18 Female NPTF, Brass

Abrasive Bristle Wire Belt Housing Aluminum 23mm

Abrasive Bristle Wire Belt Steel 23mm

Sheet Metal Drill Bit Alloy Steel 3/16"

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" MNPT

Standard Industrial Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT

Tru-Flate Safety Push-Button Safety Coupler 3/8" Body x 3/8" FNPT

Hose Nozzle Twist Brass Hose Nozzle Twist

Hose End Brass 3/8 x 3/8"

Nipple, ARO 210, 3/8'' Body, 3/8-18 Male NPTF, Steel

Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"

Item#: P28920M01

Hose Clamp 301 SS 1/2 to 29-32"

Fuel Line Hose 3/8" ID x 25'

Garden Hose End Brass 3/4" x 3/4-11-1/2

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT

Garden Hose End Brass 1/2" x 3/4-11-1/2

Bumper Cover Push-Type Retainer Nylon 18mm

Shield Push-Type Retainer with Metal Insert

Bumper Drive Rivet Plastic 10mm Hole

Butt Connector 16 to 14 AWG Blue

Miniature Incandescent Bulb 12V 36CP

Flex-E-6000 Seam Sealer with Turbo Mixer

Flex-E-6000 Seam Sealer with Turbo Mixer

Square Turbo Mixer 21 Element with Integrated Nut

Miniature Incandescent Bulb 12V

Product Description

• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns

Technical Specifications

Item#:	KT15127
Description	Push-Button Coupler
Type	Nipple
Style	High Flow
Body Size	1/4 "
Thread Style	Female NPTF
Thread Size	1/4-18
Material	Steel
UNSPSC #:	27131613
TAA Compliant:	Yes
Weight:	0.05 lb
