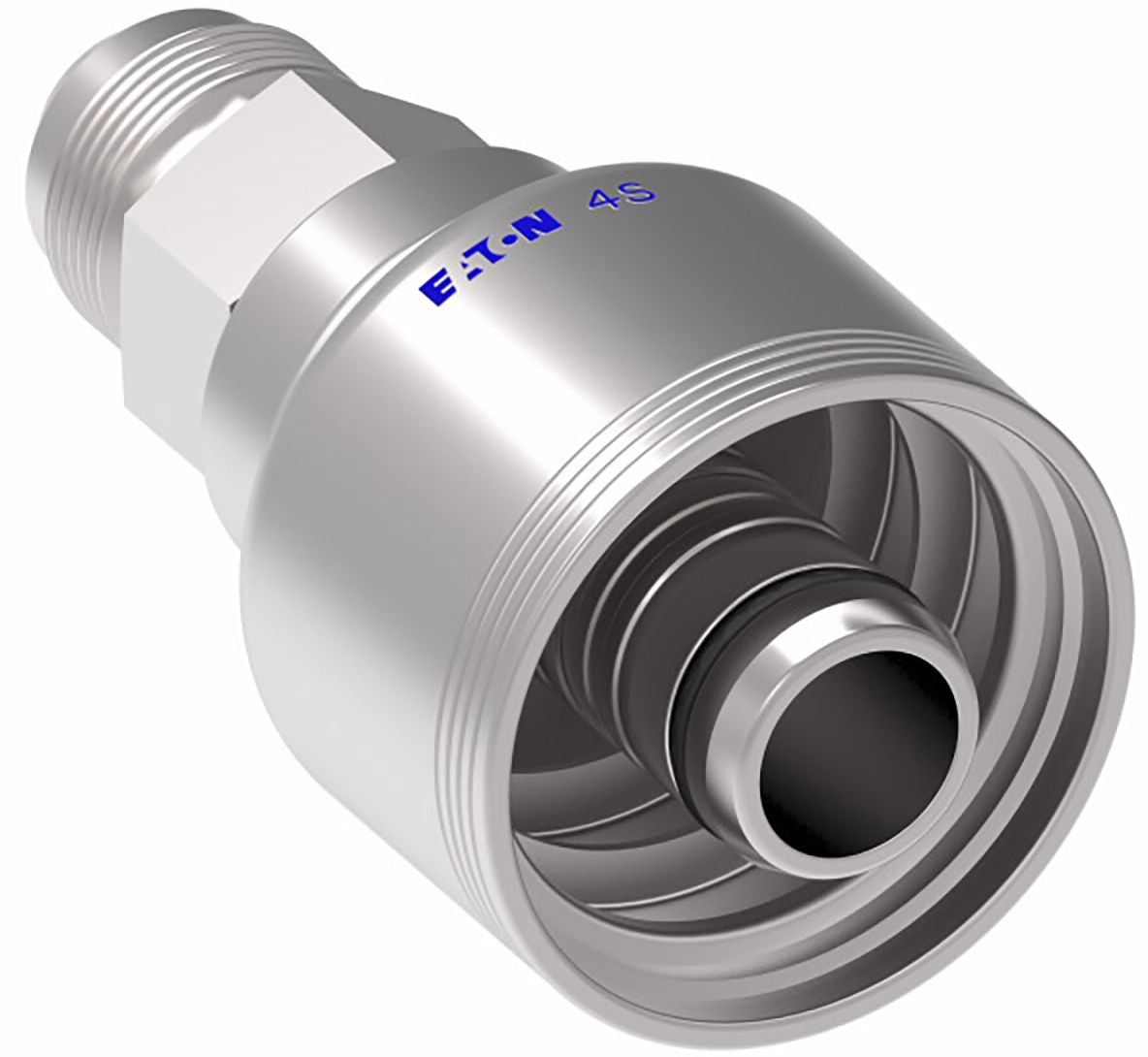

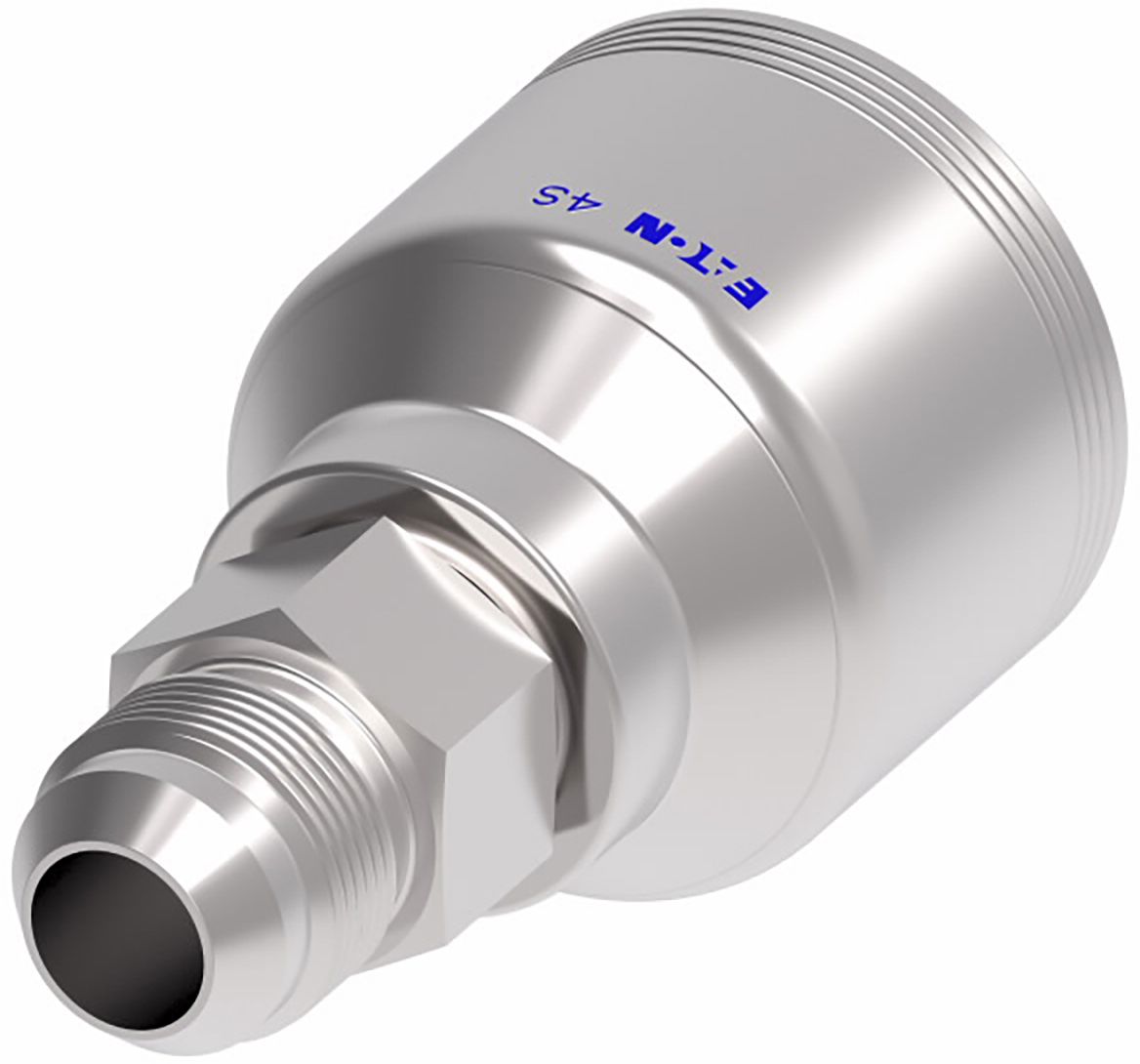

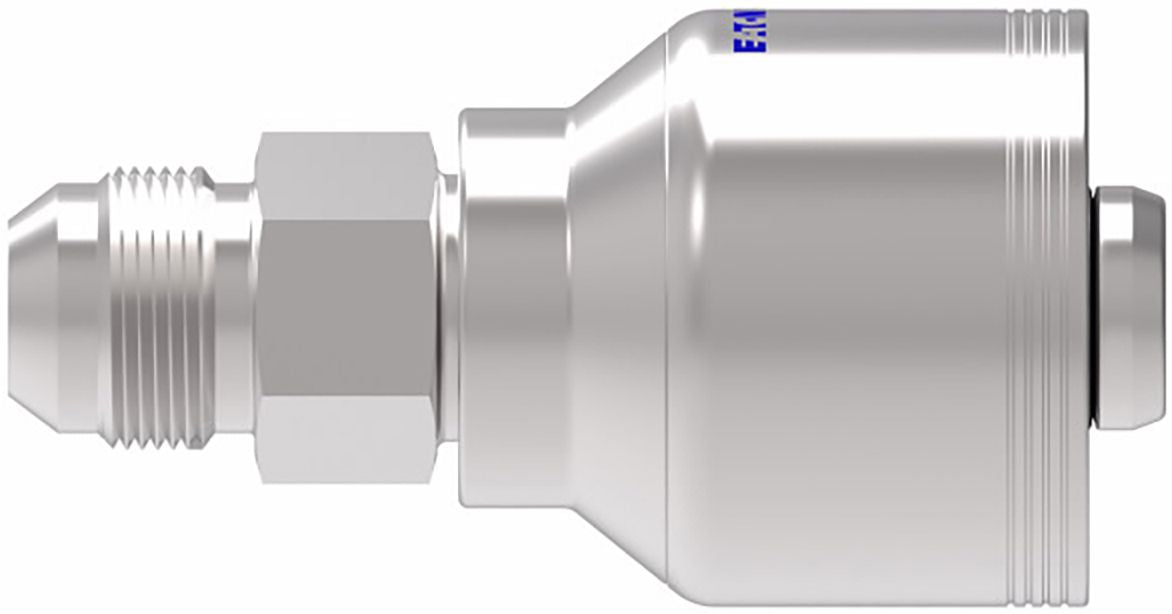

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid JIC 37°, 3/4 (-12) x 1-5/16-12 (-16)
(Pack of
2)
SKU:1542993 Item#: 1542993
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
06Z-BC66- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174483
$0.00
Couldn't load pickup availability
06Z-BC06- Hose End (perm) 1S/1R Str Male STC
Item#: 1172945
$0.00
Couldn't load pickup availability
Valve Core 210VC 733204045
Item#: 1641222
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555862
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
Item#: KT13010
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
Item#: P27055
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Item#: P28920M01
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Item#: P63858M01
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Item#: 1585088
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542993 |
|---|---|
| Manufacturer Model #: | 4SA16MJ12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-5/16-12 (-16) |
| Weatherhead No. | 4SA16MJ12 |
| SAE Code | J1176 |
| Hex Size | 1.375 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.87 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.47 lb |
