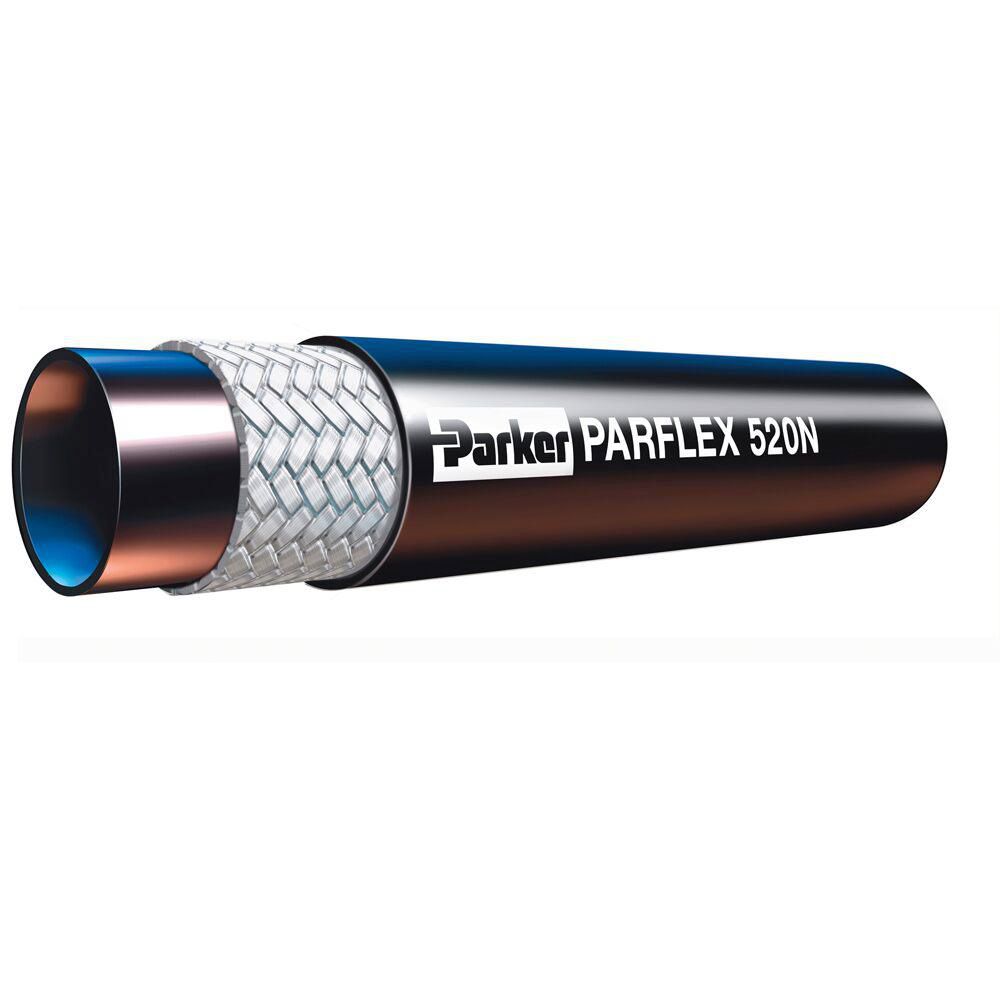

520N Hydraulic Hose, Urethane, 1-Steel Braided, 5/16" ID, 0.57" OD, 50' Length, 4500PSI, SAE 100R8
(Pack of
50)
SKU:88645 Item#: 88645
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.
• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
M2T Hydraulic Hose Rubber 0.82" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.75" x 50'
$0.00
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.66" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 250'
$0.00
Couldn't load pickup availability
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88645 |
|---|---|
| Manufacturer Model #: | 520N-5 |
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 520N |
| Manufacturer Series Name | Parflex |
| Dash Size | -5 |
| Working Pressure | 4,500 PSI |
| Burst Pressure | 18,000 PSI |
| Minimum Bend Radius | 2-1/2 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 55 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 5/16 (-5) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88804 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 12.0 lb |
