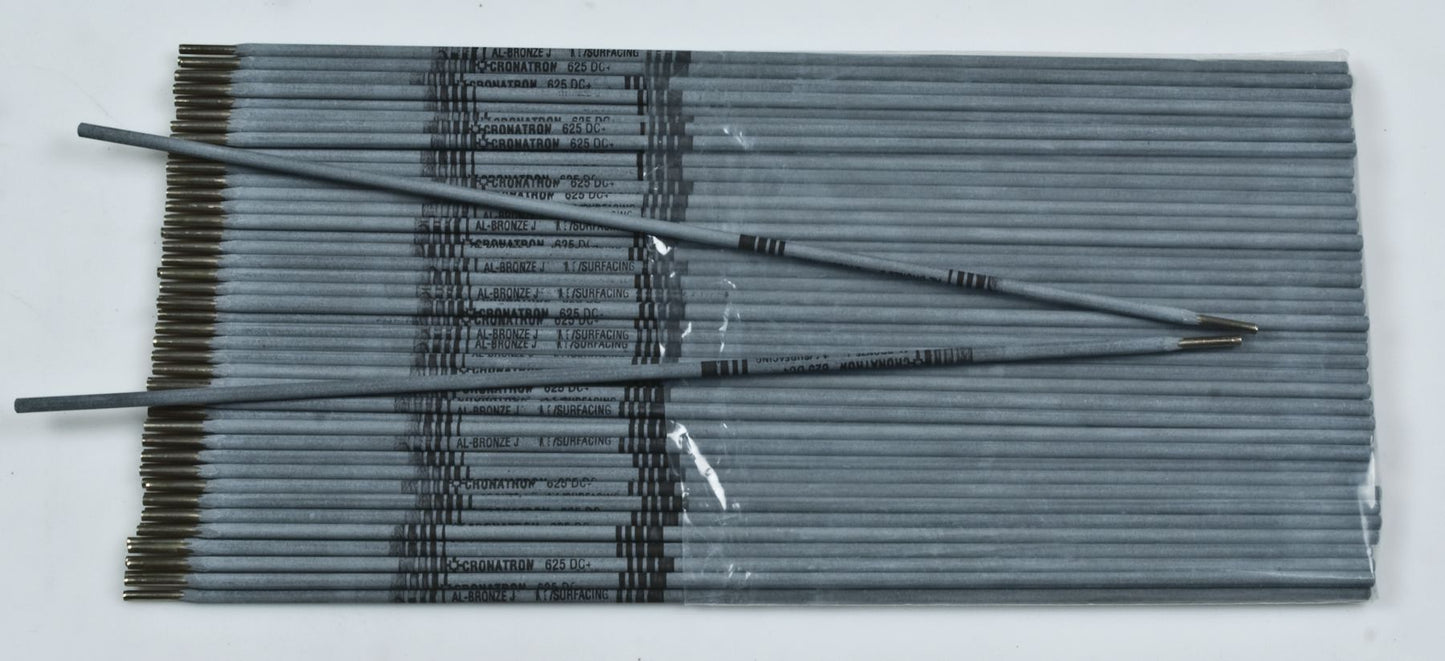

625 Copper and Brass Stick Rod Electrode, Flux Coated, 100 to 120 Amps, DCRP Polarity, Easy Arc Control, 1/8"
(Pack of 5)

SKU:CW1045 Item#: CW1045

Cronatron®

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSI
Hardness: Rc 21-23
Polarity: DC Reverse
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts
Usage ProcedureUse DC reverse polarity. Clean surfaces of grease, rust or scale. Use short arc with weave or stringer bead. No preheating required, except on heavy sections: 500°F (260°C) steel; 900°F (482°C) copper. For TIG use direct current straight polarity (electrode–). Clean surfaces of grease, rust, scale, etc. Use pure argon gas or a mixture of argon/helium for heavy sections. Set the flow rate at 15 to 20 CFH. For best results, use a gas lens collet body. Amperage will depend on ba

Check Availability

Quantity

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Frequently Bought Together

665 Copper and Brass TIG Wire 3/32"

625 Copper and Brass MIG Welding Wire 0.045"

625 Copper and Brass TIG Wire 1/16"

Bumper Radiator and Grille Drive Rivet 7mm Hole

Push-Type Retainer Nylon 16 x 19mm

Bumper Fascia General Purpose Split Rivet 3/16"

Plastic Welder Staple Assortment 400Pcs

Rosin Core Solder 1/16"

Weldpro AC/DC TIG and Stick Welder Kit

CuSi-A Wire for Mig Brazing, 10lbs

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb

Product Description

Welds most ferrous and non-ferrous metals and joins most combinations of dissimilar metals (except white metals).
Superior Advantages
• Tough, crack-free, machinable welds
• Easy arc control with little preheat
• High frictional wear resistance
• High strength
Tensile Strength: 110,000 PSI
Hardness: Rc 21-23
Polarity: DC Reverse
Typical Applications
• Brass, bronze or cast iron to steel
• Gear teeth, valves and castings
• Impellers, cams and shafts
Usage ProcedureUse DC reverse polarity. Clean surfaces of grease, rust or scale. Use short arc with weave or stringer bead. No preheating required, except on heavy sections: 500°F (260°C) steel; 900°F (482°C) copper. For TIG use direct current straight polarity (electrode–). Clean surfaces of grease, rust, scale, etc. Use pure argon gas or a mixture of argon/helium for heavy sections. Set the flow rate at 15 to 20 CFH. For best results, use a gas lens collet body. Amperage will depend on ba

Technical Specifications

Item#:	CW1045
Welding Process	Stick
Type	Flux Coated
Diameter	1/8 "
Tensile Strength	110,000 PSI
Base Metal	Copper/Brass
Hardness	21-23 HRC
Polarity	DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.0 lb
