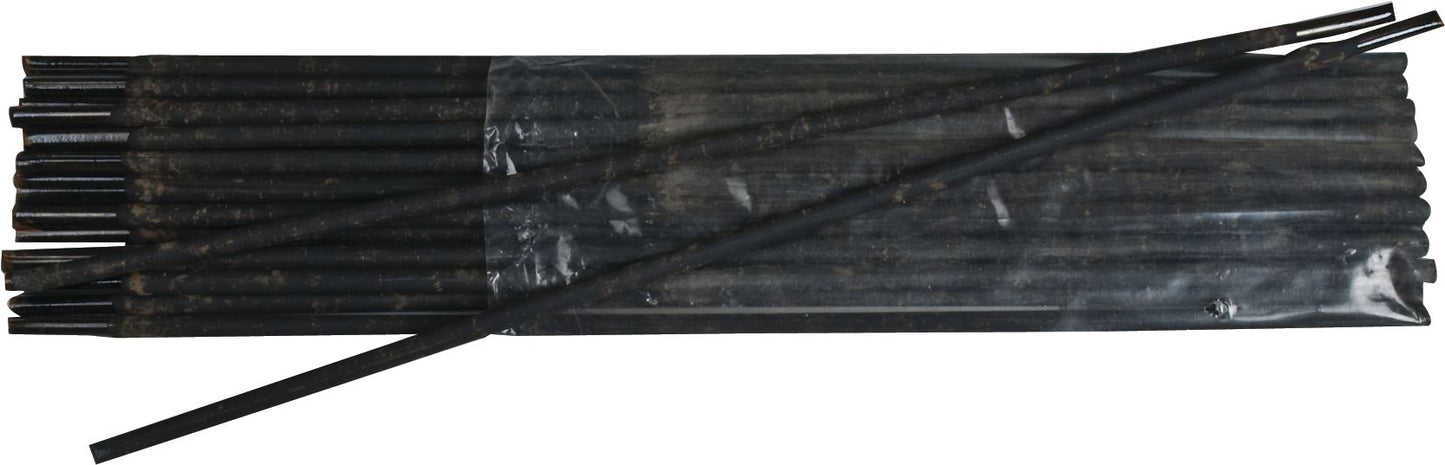

7222 Carbide Hard Facing Stick Rod Electrode, 60 to 65 HRC Hardness, 85 to 110 Amps, AC/DCSP Polarity,18" Length, 1/4"
(Pack of
5)
SKU:CW1908 Item#: CW1908
Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Tungsten carbide alloy for extreme abrasion resistance
Hardness: Rc 65 (2nd pass)Polarity: AC or DC Straight
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureClean base metal. Large sections may require preheating. Use AC or DCSP 85 to 110 amps. Low amperage setting minimizes base metal dilution. Stringer bead or slight weave technique is recommended. Do not use on manganese steel.
Maximum Abrasion Resistance
Technical TipA tight arc reduces heat input and improves deposit properties.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
7220 Carbide Hard Facing Stick Rod Electrode 3/8"
$0.00
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
747 Cobalt Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
711 Carbide Hard Facing Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .035X25LBS
$0.00
Couldn't load pickup availability
7310 Carbide Hard Facing MIG Welding Wire 1/16"
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Cronatron Welding Guide
$0.00
Couldn't load pickup availability
710 Stainless Steel Electrode 3/32"
$0.00
Couldn't load pickup availability
Heat Stick 650F Degrees
$0.00
Couldn't load pickup availability
Product Description
Superior Advantages• Maximum carbide content provides maximum abrasion resistance
Tungsten carbide alloy for extreme abrasion resistance
Hardness: Rc 65 (2nd pass)Polarity: AC or DC Straight
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureClean base metal. Large sections may require preheating. Use AC or DCSP 85 to 110 amps. Low amperage setting minimizes base metal dilution. Stringer bead or slight weave technique is recommended. Do not use on manganese steel.
Maximum Abrasion Resistance
Technical TipA tight arc reduces heat input and improves deposit properties.
Technical Specifications
| Item#: | CW1908 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 1/4 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Tungsten |
| Hardness | 60-65 HRC |
| Polarity | AC/DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.43 lb |
