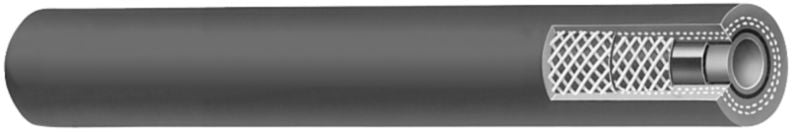

PolarSeal AC134A Refrigerant Hose, 2Plies Spiral Poly. Reinforcement& Nyln Inner Tube, 500PSI, 1/2 (-10)"(ID), 1.00"(OD), 25ft
(Pack of
25)
SKU:57879 10 Item#: 57879 10
Ideal for liquid and gaseous R134A and R12 refrigerants in automotive and air conditioning and industrial systems (i.e. tractors, construction trucks, and mobile and stationary refrigeration). PolarSeal® hoses are designed to minimize permeation of R134A refrigerant and contamination of the system.
J2064
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube: Black, synthetic rubber (chloroprene)• Reinforcement: Spiraled polyester• Cover: Black, synthetic rubber (EPDM)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 25-foot length
Frequently Bought Together
3TR8N Hydraulic Thermoplastic Hose 0.59" x 50'
$0.00
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.48" x 50'
$0.00
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.90" x 50'
$0.00
Couldn't load pickup availability
Spacer Ring Red/Blue
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 14.8 x 19.6mm
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
8Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
DTM High Build Seam Sealer White 10fl.oz
$0.00
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Metric
$0.00
Couldn't load pickup availability
Air Conditioning Hose 1/2" 210ft
$0.00
Couldn't load pickup availability
GH134W Multi-Refrigerant Hose 5/16" 200ft
$0.00
Couldn't load pickup availability
AC134A Refrigerant Hose 5/16" 25ft
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
Ideal for liquid and gaseous R134A and R12 refrigerants in automotive and air conditioning and industrial systems (i.e. tractors, construction trucks, and mobile and stationary refrigeration). PolarSeal® hoses are designed to minimize permeation of R134A refrigerant and contamination of the system.J2064
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube: Black, synthetic rubber (chloroprene)• Reinforcement: Spiraled polyester• Cover: Black, synthetic rubber (EPDM)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 25-foot length
Technical Specifications
| Item#: | 57879 10 |
|---|---|
| Manufacturer Model #: | 10AC134A |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064, Type C, Class II Performance |
| Manufacturer Series Number | AC134A |
| Manufacturer Series Name | PolarSeal |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 4 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 2 Plies Spiral Polyester |
| Hose Cover Material | EPDM |
| Fitting Series | G45 |
| Temperature | -22F to +257F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 10.09 lb |
