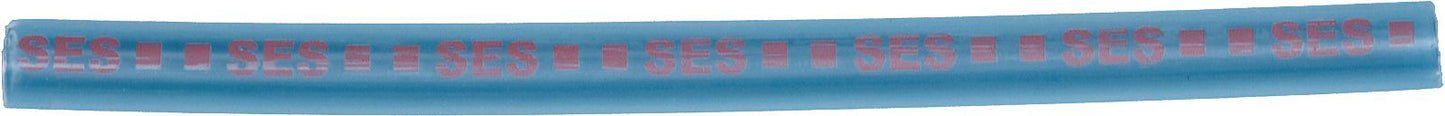

Adhesive Heat Shrink Tubing, 22 to 10 AWG, Clear/Red, 6" Length, 0.3" ID Before and 0.06" ID After Shrinkage, 4:1 Shrink Ratio
(Pack of
8)
• 4:1 shrink ratio
• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Miniature Incandescent Bulb 12V 12CP
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Halogen Miniature Bulb 65W 12V
Couldn't load pickup availability
Heat Shrink Tubing 22 to 20 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 18 to 16 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID 25'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Rubber Grommet 5/8" ID
Couldn't load pickup availability
Product Description
• 4:1 shrink ratio• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 16324 |
|---|---|
| Type | Pre-Cut |
| Wire Gauge Coverage | 22-10 AWG |
| Length | 6 " |
| Color | Clear/Red |
| I.D. Before Shrinkage | 0.300 " |
| I.D. After Shrinkage | 0.06 " |
| Shrink Ratio | 4 to 1 |
| Dielectric Strength | 500 V/mm |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
