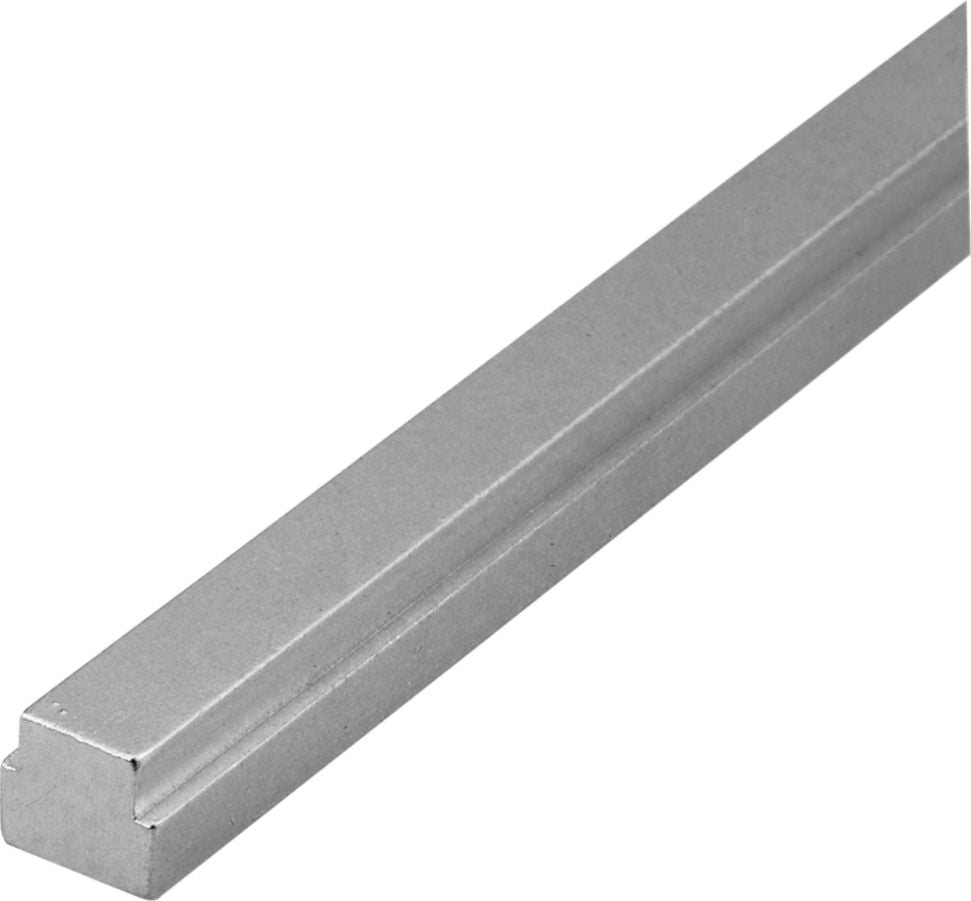

ASTM A108 Step Keystock, Type 2, Steel, 5/8" Base Width and 5/16" Height, 1/4" Step Height and 1/2" Width, 12" Length
(Pack of
1)
SKU:55845 Item#: 55845
• Manufactured of Type 1018 Cold Finished Steel
• Oversized stock, ground down to dimensions per tolerances below
• Zinc-plated for corrosion resistance
12" pre-cut lengths
Type 1 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.003" to +0.003"
Step height and base height dimensions: –0.004" to +0.004"
Type 2 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.005" to +0.005"
Step height and base height dimensions: –0.005" to +0.005"
• Use for couplings, gears, sheaves, sprockets, pulleys or anything that keys to a shaft
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
$0.00
Couldn't load pickup availability
Keystock Square M5
$0.00
Couldn't load pickup availability
DIN 6880 Keystock Rectangular 6 x 14mm
$0.00
Couldn't load pickup availability
DIN 6880 Keystock Square 6mm
$0.00
Couldn't load pickup availability
Hammerlock Cotter Pin 3/32 x 2"
$0.00
Couldn't load pickup availability
Hammerlock Cotter Pin 5/32 x 2"
$0.00
Couldn't load pickup availability
Hammerlock Cotter Pin 3/32 x 1/2"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Manufactured of Type 1018 Cold Finished Steel• Oversized stock, ground down to dimensions per tolerances below
• Zinc-plated for corrosion resistance
12" pre-cut lengths
Type 1 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.003" to +0.003"
Step height and base height dimensions: –0.004" to +0.004"
Type 2 Tolerances
Step width and base width dimensions: 0.000" to 0.002"
Step height/base height dimensions: –0.005" to +0.005"
Step height and base height dimensions: –0.005" to +0.005"
• Use for couplings, gears, sheaves, sprockets, pulleys or anything that keys to a shaft
Technical Specifications
| Item#: | 55845 |
|---|---|
| Size | 5/8 x 1/2 " |
| Length | 12 " |
| Style | 2 |
| Material | Carbon Steel |
| Type | Standard |
| Step Width | 1/2 " |
| Base Width | 5/8 " |
| Step Height | 1/4 " |
| Base Height | 5/16 " |
| Finish | Bright Zinc |
| Grade | C1018 |
| Specifications | ASTM-A-108 |
| Length Tolerance | +.125 / -.125" |
| Rockwell Hardness | Not Specified |
| Thickness Tolerance | A or C Dimension '+/-.004"; B or D Dimension '+/-.005" |
| UNSPSC #: | 31163208 |
| TAA Compliant: | Yes |
| Weight: | 1.09 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
