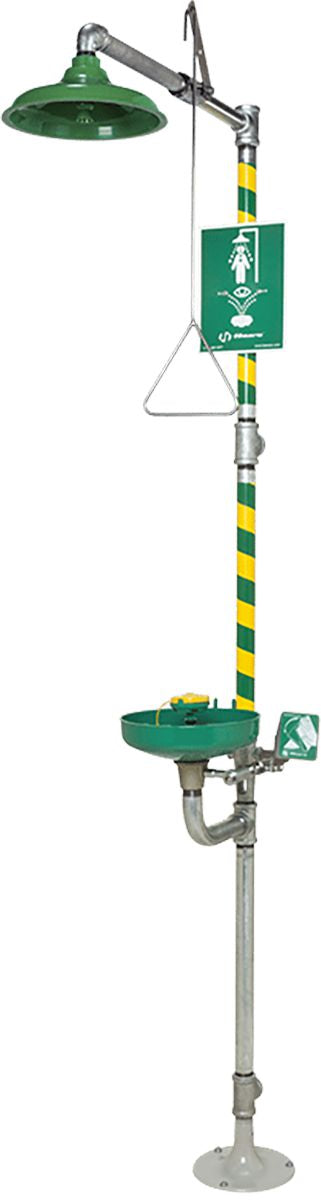

Axion MSR Emergency Shower and Eye/Face Wash Station, Floor Mount, Plastic, Galvanized Steel, Chrome-Plated Brass, 20 gpm Flow Rate, 11 in. Bowl, Silver/Green/Yellow
(Pack of
1)
Combination shower and eye/face wash includes a green ABS plastic 11" (27.9 cm) bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Units also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Corrosion Resistant Shower and Eye/Face Wash
Couldn't load pickup availability
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Axion MSR Combination Shower and Eye/Face Wash
Couldn't load pickup availability
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Pure Flow 1000 Eyewash Station
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Acid Brush 1/2 x 5-3/4"
Couldn't load pickup availability
Service Dispatch Number 3000 to 3999
Couldn't load pickup availability
Tamper Identification Marker Yellow
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Marker Pen White
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Combination shower and eye/face wash includes a green ABS plastic 11" (27.9 cm) bowl. An eye/face wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Units also include an ABS plastic showerhead with 20 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Units also include Schedule 40 hot-dipped galvanized steel pipe and fittings, powder-coated cast-iron 9" diameter floor flange, yellow plastic pop-off dust cover for eyewash head, self-adhesive high visibility safety green and bright yellow stripes, universal sign, and 1-1/4" NPT supply.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Uniform drenching
• Stainless steel push flag for eyewash activation, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
• Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1648005 |
|---|---|
| Overall Height | 93-1/4 " |
| Style | With Eyewash/Facewash Station |
| Body Material | Plastic |
| Approvals | ANSI/ISEA Z358.1-2014, CSA Certified |
| Type | Drench Shower Combo |
| Drench Shower Material | Plastic |
| Eye Wash Material | Plastic |
| Water Supply | 1-1/4" NPT |
| Includes | Eye/Face Wash Head, ABS Plastic Showerhead, Green ABS Plastic 11" Bowl, Inspection Tag, Cast Iron 9" Dia. Floor Flange, Sch 40 Galv Steel Pipe/Fittings, Safety Green and Bright Yellow Stripes, Sign, Universal Sign, Yellow Plastic Dust Cover |
| Mount Style | Floor |
| Material | Plastic/Galvanized Steel/Chrome-Plated Brass |
| Flow Rate | 20 gal/min |
| Description | Shower with Eye/Face Wash Station |
| Color | Silver/Green/Yellow |
| Eyewash Bowl Diameter | 11 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
