Axion MSR Wall Mount Eye/Face Wash Station, Plastic, Chrome-Plated Brass, Stainless Steel, Aluminum, 10 gpm Flow Rate, 11 in. Bowl, Silver
(Pack of
1)

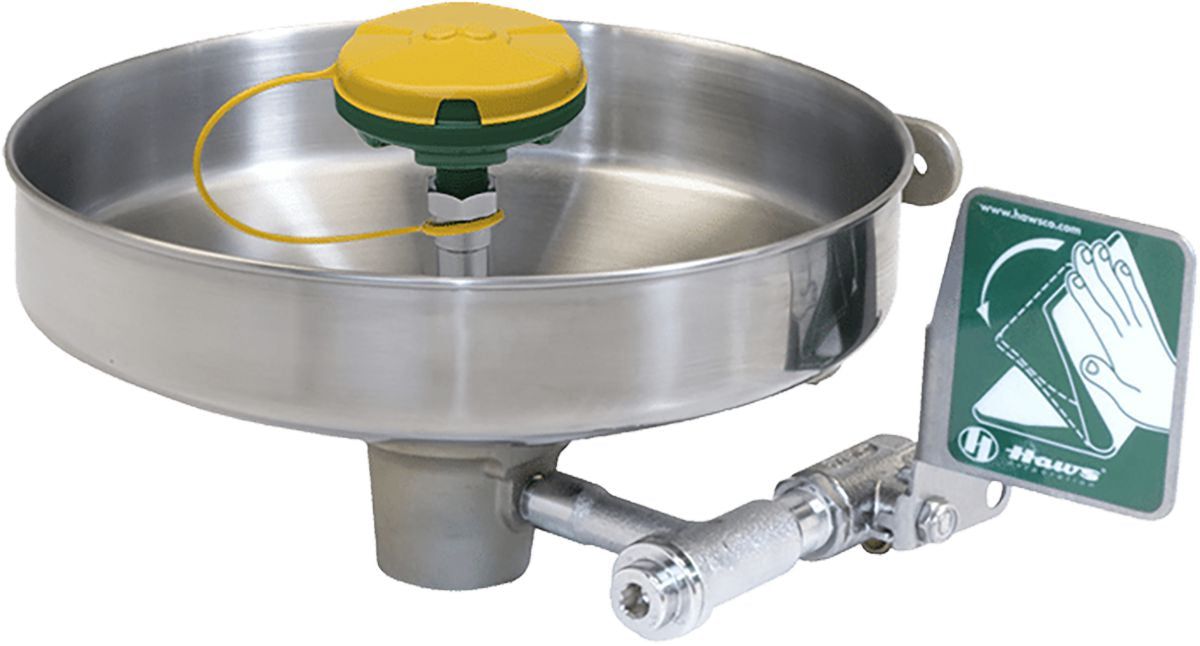

A wall mounted eye/face wash includes a stainless steel 11" round bowl. The wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
Features a round 11" (27.9 cm) stainless steel receptor, aluminum wall bracket and tailpiece and trap
Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
Supply: 1/2" NPT. Waste: 1- 1/2" NPT
ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Emergency Freeze Protected Shower and Eyewash
Couldn't load pickup availability
Axion MSR Combination Shower and Eye/Face Wash
Couldn't load pickup availability
High-Strength Double Side Molding Tape 5/8" x 50'
Couldn't load pickup availability
Butyl Windshield Tape 3/8" x 15'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" X 50'
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Couldn't load pickup availability
Butyl Windshield Tape 1/4" x 15'
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Hand Wash Sink with Axion Eye/Face Wash
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Porta Stream I Eyewash Station
Couldn't load pickup availability
Product Description
A wall mounted eye/face wash includes a stainless steel 11" round bowl. The wash head features inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste. Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
Features a round 11" (27.9 cm) stainless steel receptor, aluminum wall bracket and tailpiece and trap
Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
Supply: 1/2" NPT. Waste: 1- 1/2" NPT
ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647980 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel/Aluminum |
| Mount Style | Wall |
| Color | Silver |
| Eyewash Bowl Diameter | 11 " |
| Width | 14-3/4 " |
| Height | 11 " |
| Eye Wash Material | Plastic |
| Body Material | Stainless Steel |
| Includes | Dust Cover, Inspection Tag, Universal Identification Sign, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
