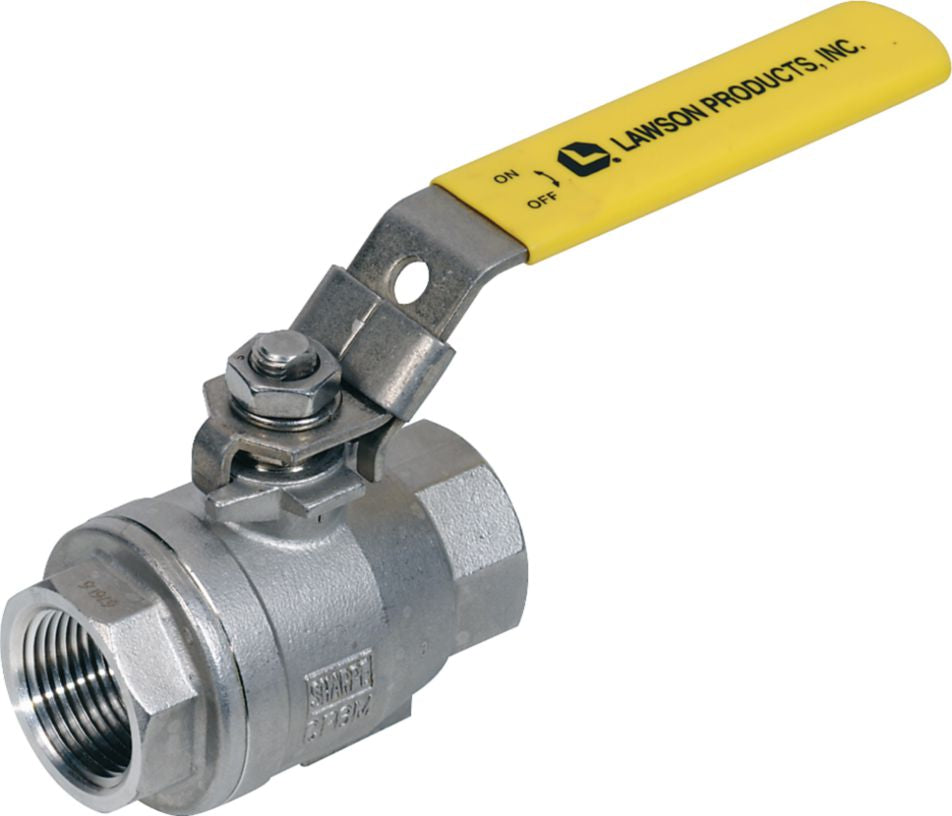

Cast Body Ball Valve with Lockout, Stainless Steel, Schedule 40, 1/4-18 x 1/4-18, Female NPT x Female NPT
(Pack of
1)
SKU:62357 Item#: 62357
• Full port design for unrestricted flow and a cast two-piece Type 316 Stainless Steel body• Heavy-duty design contains a Type 316 Stainless Steel ball, blowout-proof stem, Type 304 Stainless Steel handle and reinforced Teflon® seats for longer life• The handles have a safety lockout device to allow the handle to be locked and comply with OSHA lockout requirements• 1/4", 3/8" and 1/2" valves accept padlocks with 1/4" dia. shackle• 3/4" to 2" valves accept padlocks with 5/16" dia. shackle
• Working pressure: 1,000 PSI water, oil, gas; 150 PSI saturated steam• Temperature range: –20°F to +450°F (–29°C to +232°C)
• For industrial and chemical applications that require a higher pressure rating or maximum chemical resistance
Frequently Bought Together
Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Pipe Nipple Stainless Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Union 304 Stainless Steel 1-1/2 x 1-1/2"
$0.00
Couldn't load pickup availability
Pipe Elbow 304 Stainless Steel 45° 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Product Description
• Full port design for unrestricted flow and a cast two-piece Type 316 Stainless Steel body• Heavy-duty design contains a Type 316 Stainless Steel ball, blowout-proof stem, Type 304 Stainless Steel handle and reinforced Teflon® seats for longer life• The handles have a safety lockout device to allow the handle to be locked and comply with OSHA lockout requirements• 1/4", 3/8" and 1/2" valves accept padlocks with 1/4" dia. shackle• 3/4" to 2" valves accept padlocks with 5/16" dia. shackle• Working pressure: 1,000 PSI water, oil, gas; 150 PSI saturated steam• Temperature range: –20°F to +450°F (–29°C to +232°C)
• For industrial and chemical applications that require a higher pressure rating or maximum chemical resistance
Technical Specifications
| Item#: | 62357 |
|---|---|
| Fitting Type | Ball Valve |
| Material | Stainless Steel |
| Grade | 316 |
| Schedule | 40 |
| Configuration | Cast Body with Lockout |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Working Pressure | 1,000 WOG (150 Steam) PSI |
| Temperature Range | -20 to 450 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.55 lb |
