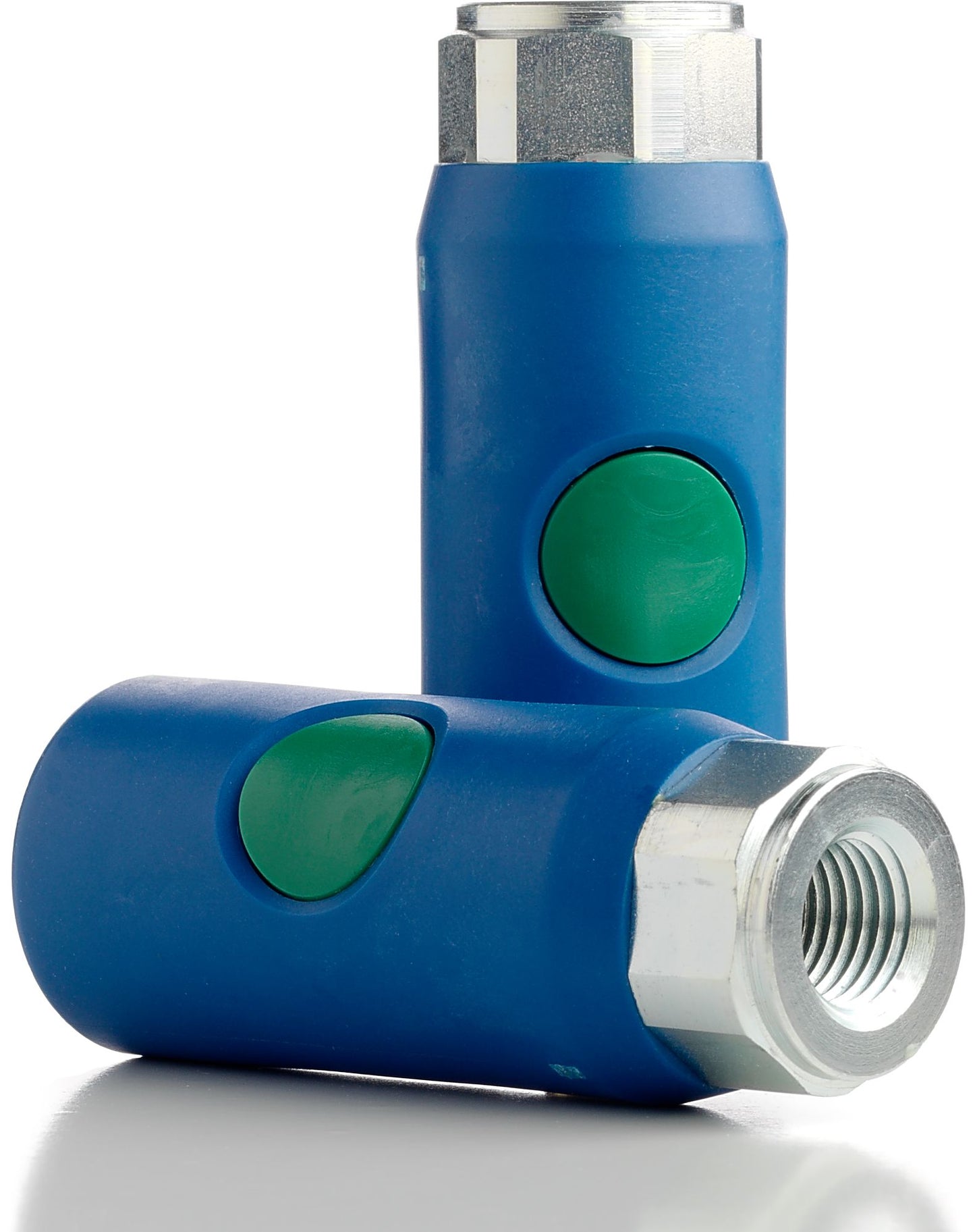

Push-Button Coupler, Steel with Plastic Cover, High Flow, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:KT15124 Item#: KT15124
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-41
Frequently Bought Together
Universal Air Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Nipple, Industrial, 1/4'' Body, 1/4-18 Male NPTF, 303 SS
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 3/8-18
$0.00
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 5/8"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• Do not qualify as safety couplers
• Body color: Blue with green button – outside plastic covering indicates if it is a regular coupler (blue or gray) or a safety coupler (black)
• Simple – just push button to release
• Button is recessed to prevent accidental disconnect
• Extremely durable – constructed of steel components encased in a high-impact, non-marring body
• Manufactured to demanding ANSI and ISO standards
• Temperature range: 5°F to 160°F (–15°C to +71°C)
• Maximum working pressure: 175 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15124 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 3/8-18 |
| Material | Steel with Plastic Cover |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.28 lb |
