Blind Rivet Nut Insert, Riv-Float Short, Steel, Zinc Clear Finish, Knurled, Large Flange, #10-24, 0.02 to 0.1" Grip, 0.433" Hole
(Pack of
5)
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

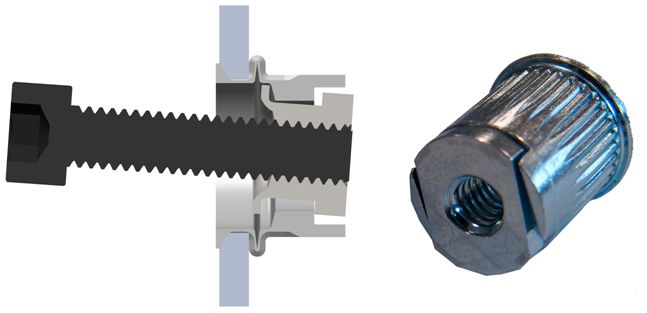

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float 1/4-20
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool 5/16-18
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool M10
Couldn't load pickup availability
Ratchet Metric Rivet Nut Hand Tool
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405702 |
|---|---|
| Diameter | #10 |
| Grip Range | .020 - .100 " |
| Length | 0.435 " |
| Thread Pitch | 24 |
| Hole Size | 0.433 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float Short |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-24 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
