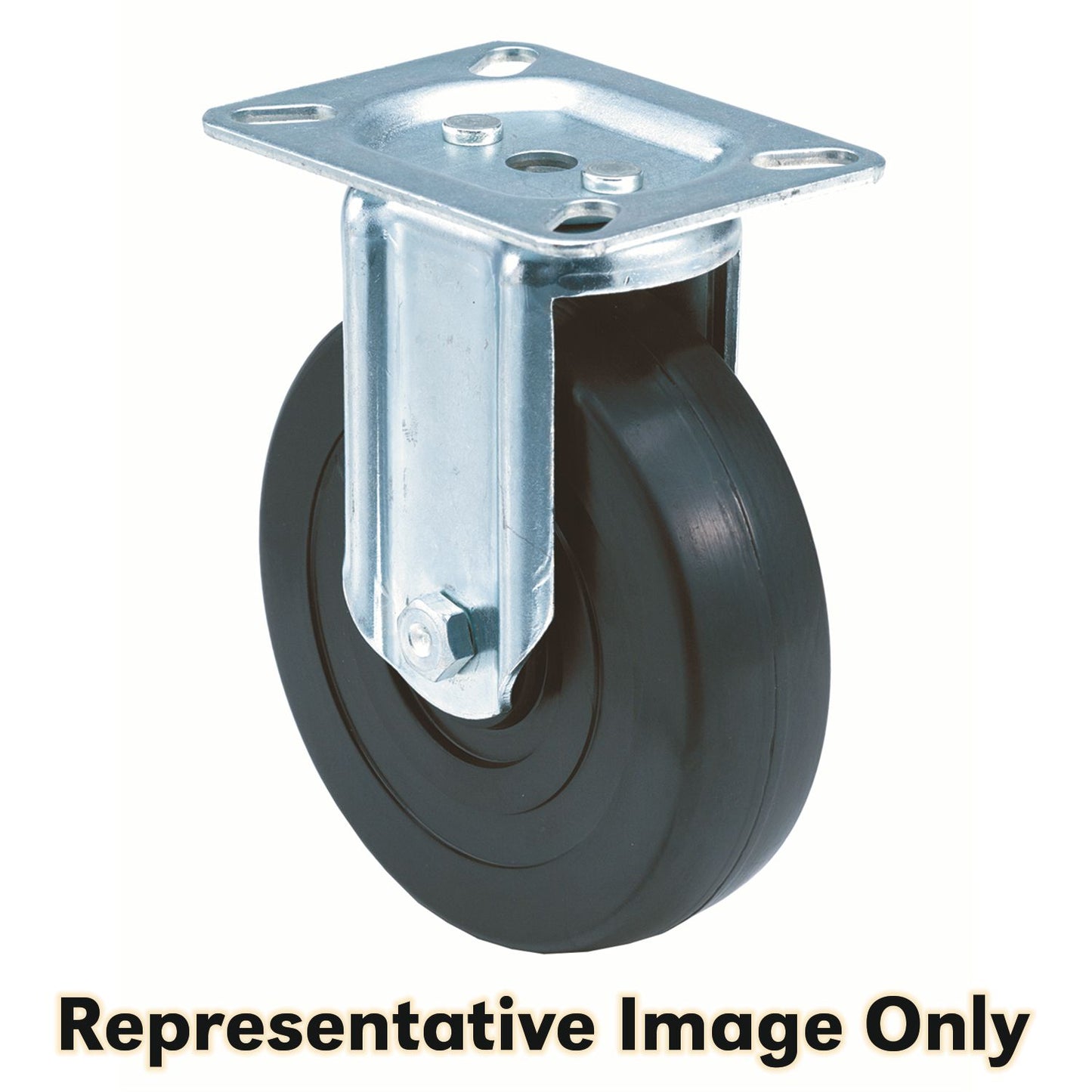

Caster, Rigid, Polypropylene Wheel, 6" Diameter, 1-3/8" Wheel Width, 400 lb Load Rating
(Pack of
1)
SKU:1588639 Item#: 1588639
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Frequently Bought Together
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Couldn't load pickup availability
20' Aluminum Plank & Stages
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588639 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 6 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 400 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.5 lb |
