Connecting Link, Double Strand, Steel, Industry No. 08B-2, 1/2" Pitch, 7,700lbs Average Tensile Strength
(Pack of
5)
SKU:57035 Item#: 57035

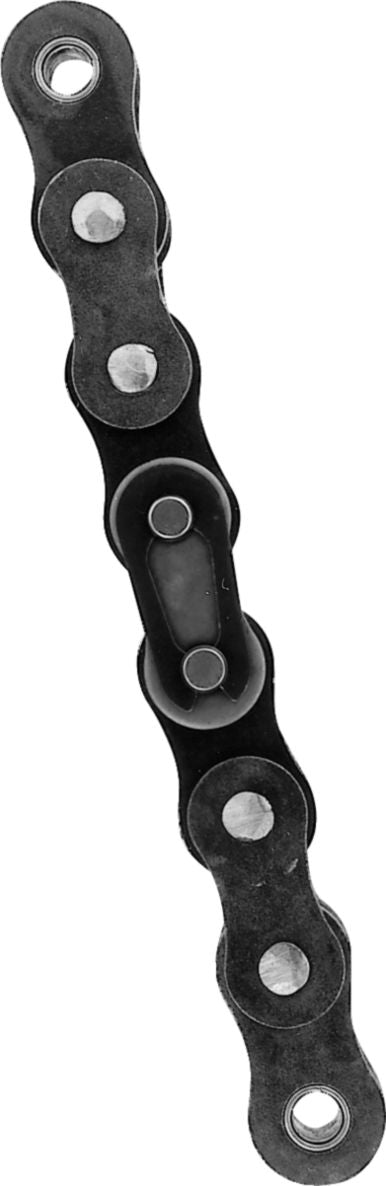

Connecting links have two pins that join the ends of a piece of chain. Side plate is easily removed to assist in assembly.
• Manufactured from superior raw materials and produced to exacting tolerances in highly-automated manufacturing facilities
• Meets ANSI & JIS Standards
• Use for all types of farm equipment, water well and drilling rigs, all types of conveyors, off-road construction machinery, canning and food processing industry
Frequently Bought Together
Connecting Link, Single Strand, Ultimate Power, Steel, Industry No. 80
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 25-2
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/8", 14,400 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Steel, Industry No. 06B
Couldn't load pickup availability
Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2
Couldn't load pickup availability
Connecting Link, Single Strand, Ultimate Power, Steel, Industry No. 80
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Connecting links have two pins that join the ends of a piece of chain. Side plate is easily removed to assist in assembly.• Manufactured from superior raw materials and produced to exacting tolerances in highly-automated manufacturing facilities
• Meets ANSI & JIS Standards
• Use for all types of farm equipment, water well and drilling rigs, all types of conveyors, off-road construction machinery, canning and food processing industry
Technical Specifications
| Item#: | 57035 |
|---|---|
| Configuration | Connecting Link |
| Type | Double Strand |
| Style | British |
| Material | Steel |
| Finish | Plain |
| Industry Number | 08B-2 |
| Pitch | 1/2 " |
| Roller Width | 0.305 " |
| Roller Diameter | 0.335 " |
| Plate Thickness | 0.059 " |
| Plate Height | 0.469 " |
| Minimum Tensile Strength | 6,974 lb |
| Average Tensile Strength | 7,700 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
