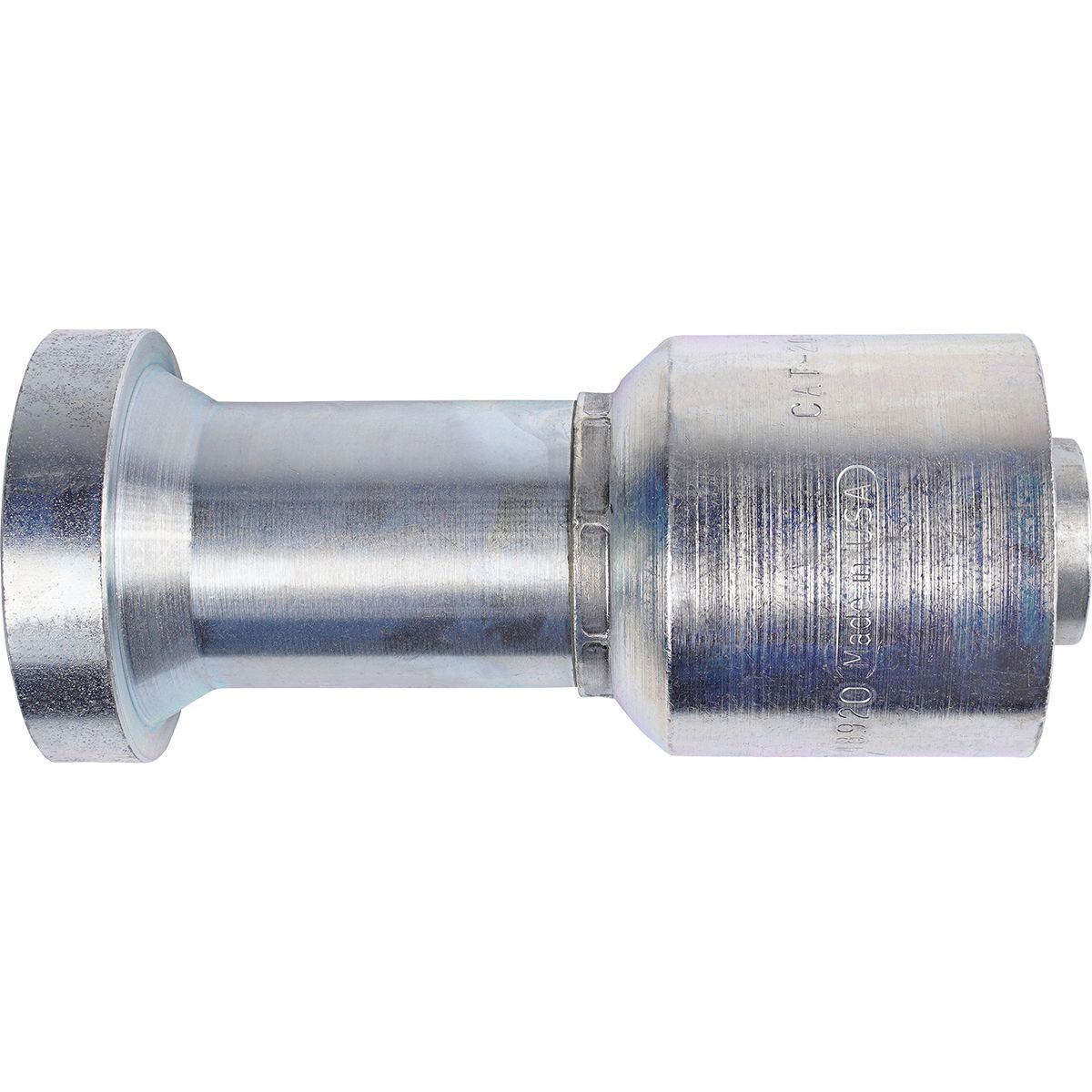

KURT Hydraulics W Carbon Steel Crimp-On Coupling CAT Flange, Straight Rigid, 1-1/4" (-20) Hose x 1-1/2(-24) Flange
(Pack of
1)
SKU:DY54260757 Item#: DY54260757
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.7 x 15.5mm
$0.00
Couldn't load pickup availability
Spacer Ring Orange/White
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260757 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar/Thick Flange |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 2.50 (-24) |
| Flange Diameter | 2.50 " |
| Flange Size | 1-1/2 " |
| Fitting Series | W |
| Size | (-20)X(-24) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 2.35 lb |
