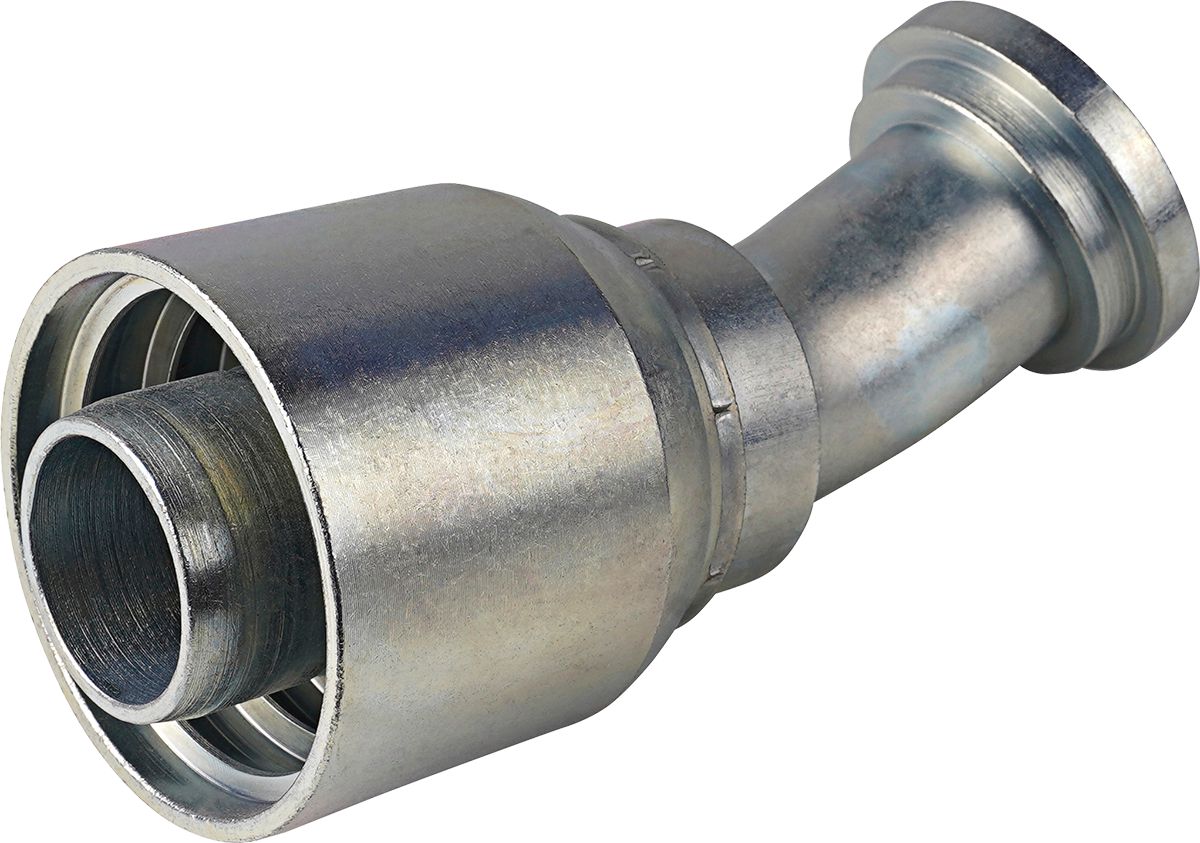

KURT Hydraulics W Carbon Steel Crimp-On Coupling SAE Code 61 Flange, 30° Bend Rigid, 2" (-32) Hose x 2"(-32) Flange
(Pack of
1)
SKU:DY54260777 Item#: DY54260777
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734733245
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734773845
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260777 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 2 (-32) " |
| Dash Size | -32 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 30 ° |
| Fitting Dimension B (Working End) | 2.81 (-32) |
| Flange Diameter | 2.81 " |
| Flange Size | 2 " |
| Fitting Series | W |
| Size | (-32)X(-32) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 4.89 lb |
