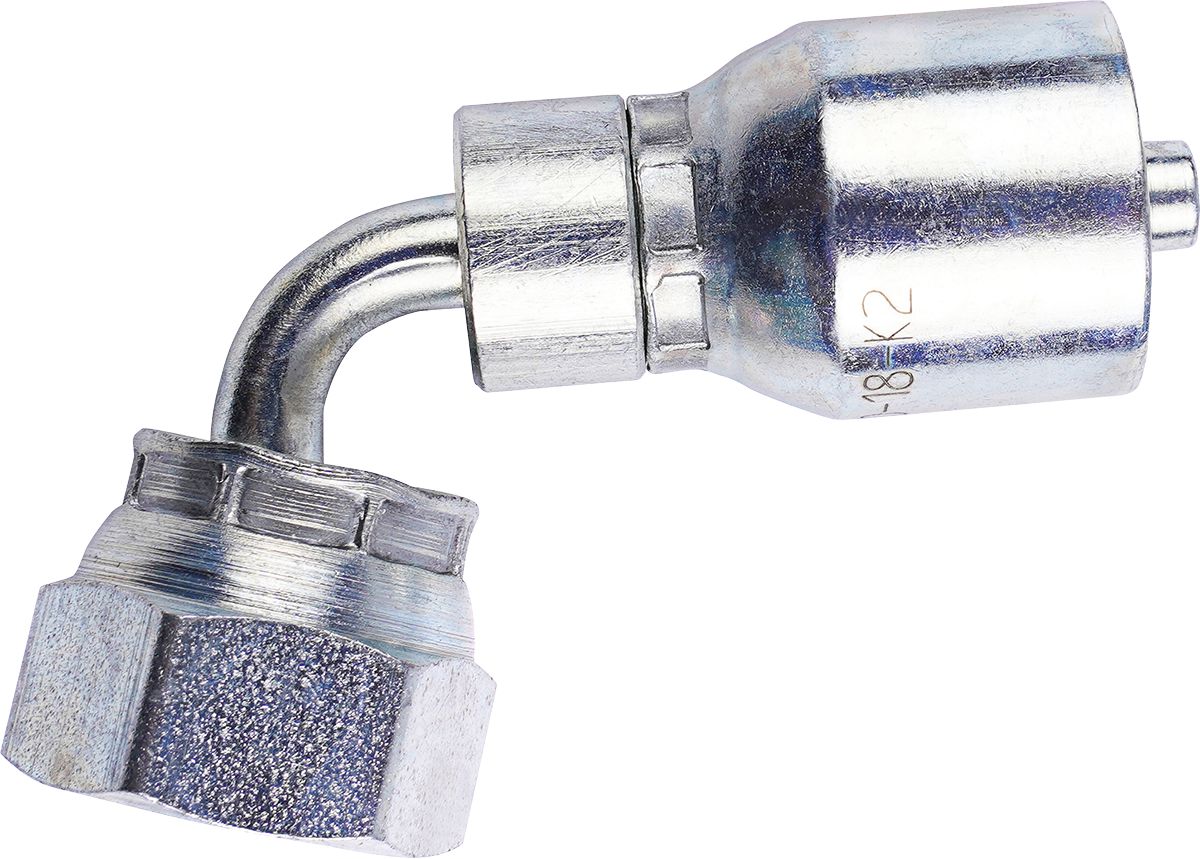

KURT Hydraulics K2 Carbon Steel Crimp-On Coupling DIN Heavy, 90° Bend Female Swivel, 1/4" (-4) Hose x M16 X 1.5
(Pack of
1)
SKU:DY54261012 Item#: DY54261012
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
$0.00
Couldn't load pickup availability
08Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
$0.00
Couldn't load pickup availability
06Z-BC46- Hose End (perm) 1S/1R 45 D Male STC
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261012 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | M16 x 1.5 |
| Fitting Series | K2 |
| O.D. Tube Size 1 | 8 mm |
| Size | (-4)XM16x1.5 |
| Hex Size | 3/4 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.195 lb |
