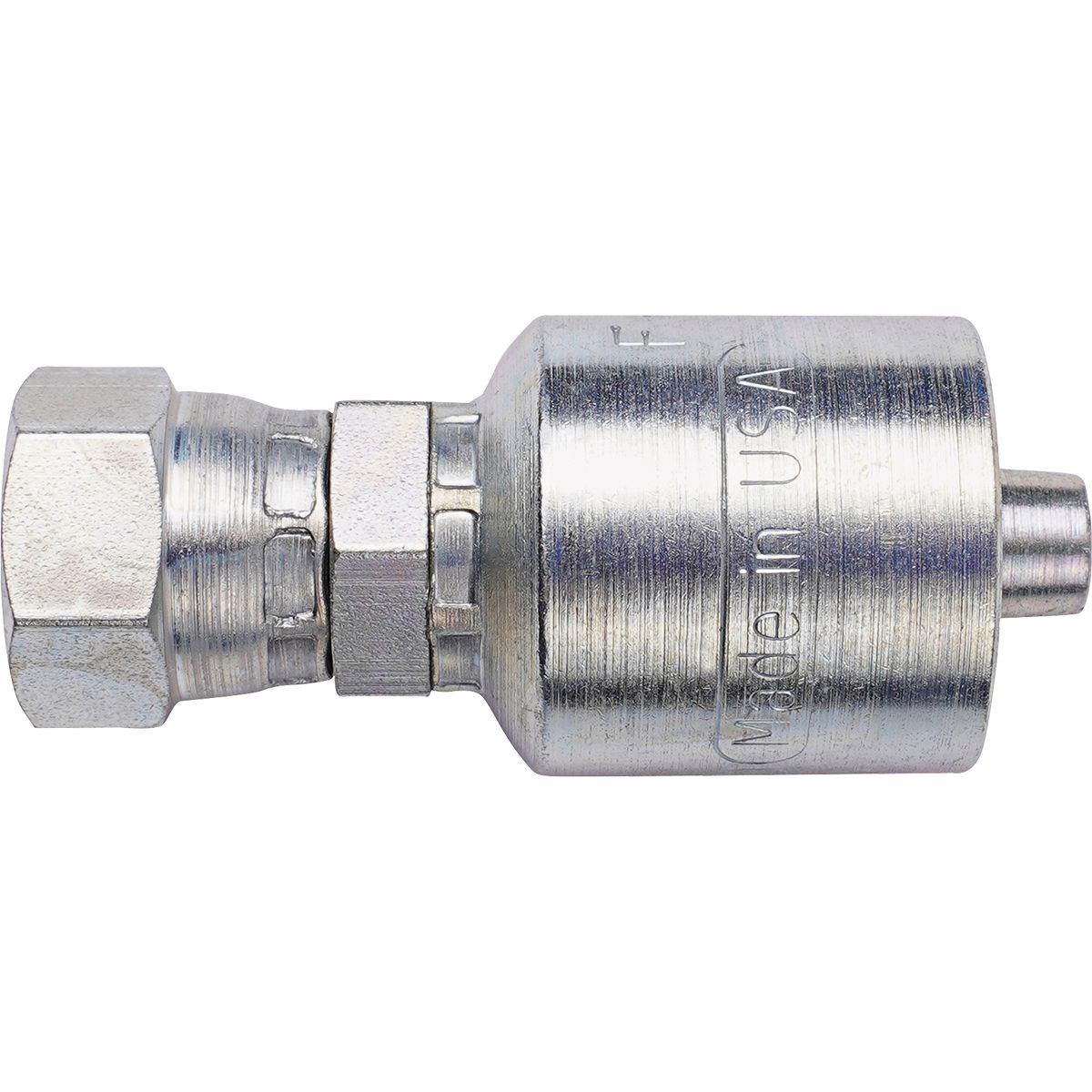

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Heavy, Female Swivel, 1/2" (-8) Hose x M20 X 1.5
(Pack of
1)
SKU:DY54261052 Item#: DY54261052
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
FF12139
$0.00
Couldn't load pickup availability
08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54261052 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M20 x 1.5 |
| Fitting Series | W |
| O.D. Tube Size 1 | 12 mm |
| Size | (-8)XM20x1.5 |
| Hex Size | 15/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.3 lb |
