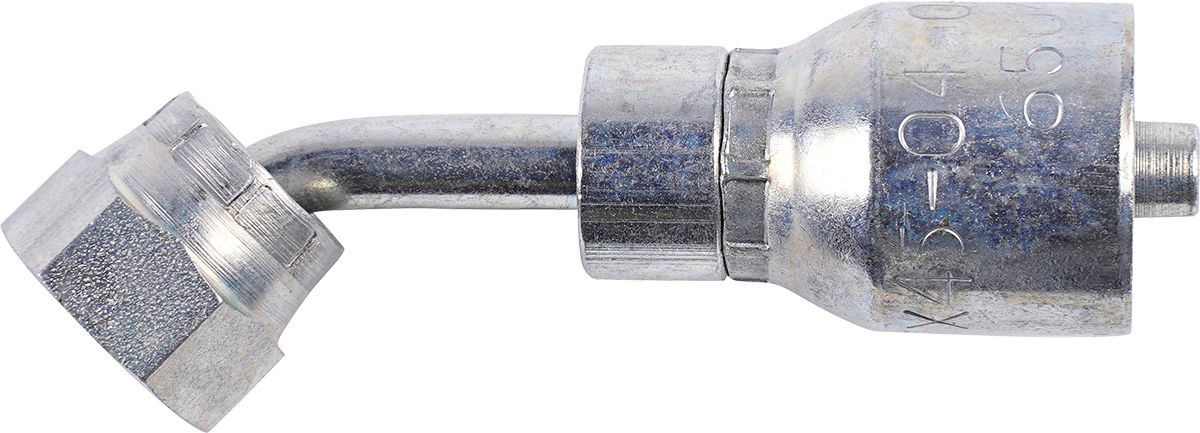

Crimp-On Coupling O-Ring Face, 45° Bend Swivel, 1/4"(-4) x 9/16-18(-4)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring
Couldn't load pickup availability
MegaCrimp Coupler, JIC 37 Deg Flare
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.49" x 250'
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.93" x 50'
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
Couldn't load pickup availability
Hose Nozzle Twist Brass Hose Nozzle Twist
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261546 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 9/16-18 (-4) |
| Fitting Series | K2 |
| Size | (-4)X(-4) |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.145 lb |
